04 - Burner, Manifold And Gas Control


05 - Broiler Drawer Parts


06 - Door Parts


07 - Body Parts

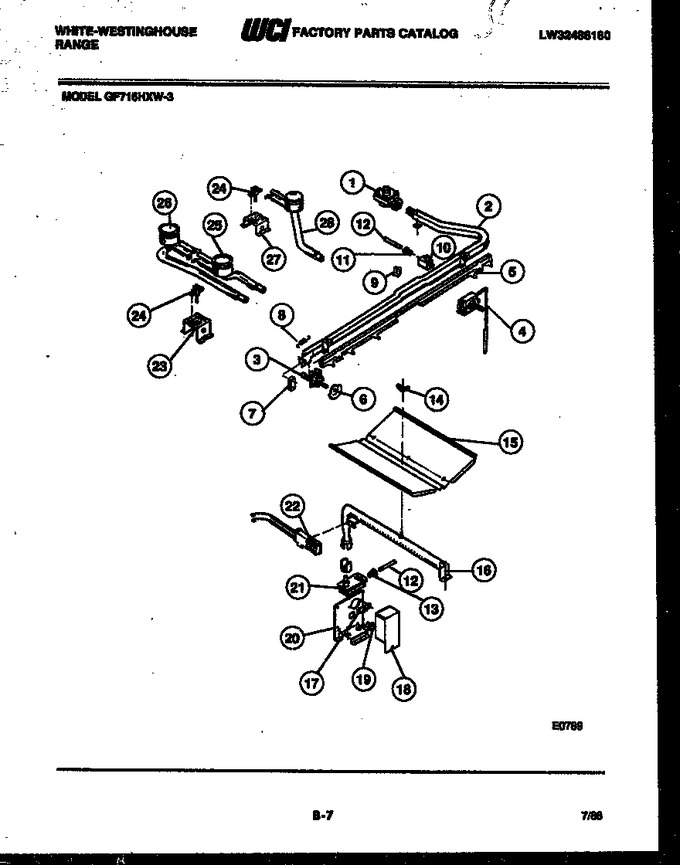

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	AP00310007		Pressure Regulator		Appelez-nous	-
2	Q000301852		Manifold 36``		Appelez-nous	-
3	Q000301273		Top Burner Valve		Appelez-nous	-
4	Q000301858		Thermostat		Appelez-nous	-
5	3018341		Slide Bar		Appelez-nous	-
6	A022002000		Cam Top Burner		Appelez-nous	-
7	Q000301874		Switch-micro		Appelez-nous	-
8	Q000301869		Spring-slide Bar		Appelez-nous	-
9	AP00091011		Clip - Capillary		Appelez-nous	-
10	AP00385174		Valve-shut-off		Appelez-nous	-
11	AP00269017		Lock Nut		Appelez-nous	-
12	3131085		Tube - Oven Feed		Appelez-nous	-
13	AP00269033		Lock Nut		Appelez-nous	-
14	AP00269004		Wing Nut		Appelez-nous	-
15	A009010000		Baffle-oven Burner		Appelez-nous	-
16	AP00072025		Burner-oven		Appelez-nous	-
17	AP00042025		Terminal Board		Appelez-nous	-
18	A032130000		Cover, Oven Valve		Appelez-nous	-
19	AP00074001		Bushing Snap		Appelez-nous	-
20	A074054000		Support Oven Valve		Appelez-nous	-
21	AP00385181		Valve Oven Safety		Appelez-nous	-
22	AP00205013		Igniter-oven		Appelez-nous	-
23	3016870		Support - Top Burner		Appelez-nous	-
24	3016869		Ignitor (3)		Appelez-nous	-
25	Q002500101		Burner, Top Front		Appelez-nous	-
26	Q002500102		Burner, Top Rear		Appelez-nous	-
27	3018342		Support - Grid Burner		Appelez-nous	-
28	Q002500103		Burner Griddle		Appelez-nous	-
3A	Q000301870		Griddle Valve		Appelez-nous	-
6A	Q000301875		Cam Griddle		Appelez-nous	-
