SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Burner, Manifold And Gas Control


05 - Broiler Drawer Parts


06 - Door Parts


07 - Body Parts

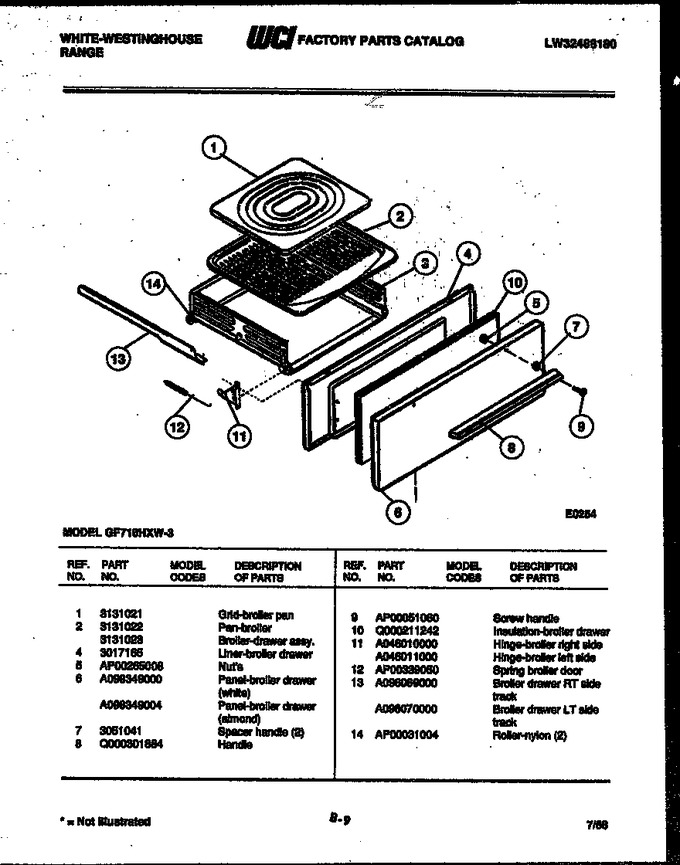

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131021		Grid-broiler Pan		Appelez-nous	-
2	3131022		Pan-broiler		Appelez-nous	-
4	3017165		Liner-broiler Drawer		Appelez-nous	-
5	3017165		Liner-broiler Drawer		Appelez-nous	-
6	A098349000		Panel-broiler Drawer (white)		Appelez-nous	-
7	3051041		Spacer Handle (2)		Appelez-nous	-
8	Q000301884		Handle		Appelez-nous	-
9	AP00051060		Screw Handle		Appelez-nous	-
10	Q000211242		Insulation-broiler Drawer		Appelez-nous	-
11	A046010000		Hinge-broiler Right Side		Appelez-nous	-
12	AP00339050		Spring Broiler Door		Appelez-nous	-
13	A096069000		Broiler Drawer Rt Side Track		Appelez-nous	-
14	AP00031004		Roller Nylon (2)		Appelez-nous	-
11A	A046011000		Hinge-broiler Left Side		Appelez-nous	-
13A	A096070000		Broiler Drawer Lt Side Track		Appelez-nous	-
2A	3131023		Broiler Drawer Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
