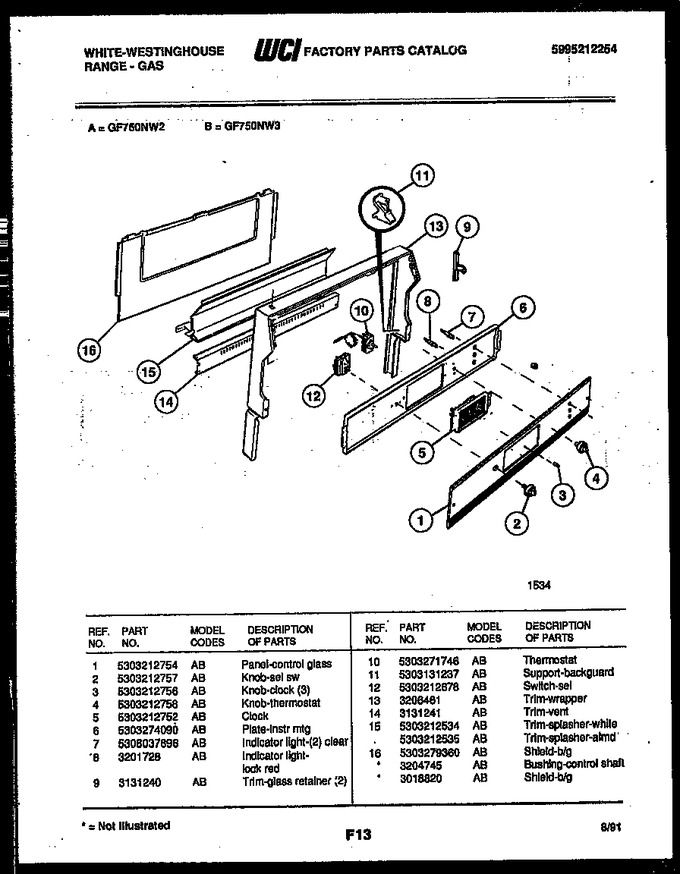

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212754 | Panel-control, Glass |
|
- | |||||
| 2 | 5303212757 | Knob-sel Sw |
|
- | |||||
| 3 | 5303212756 | Knob-clock (3) |
|
- | |||||
| 4 | 5303212758 | Knob-thermostat |
|
- | |||||
| 5 | 5303212752 | Clock |
|
- | |||||
| 6 | 5303274090 | Plate-instr Mtg |
|
- | |||||
| 7 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 8 | 3201728 | Indicator-light Lock, Red |
|
- | |||||
| 9 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 10 | 5303271746 | Thermostat |
|
$ 414.28 | |||||
| 11 | 5303131237 | Support, Backguard |
|
- | |||||
| 12 | 5303212678 | Switch-sel |
|
- | |||||
| 13 | 3206461 | Trim-wrapper |
|
- | |||||
| 14 | 3131241 | Trim-vent |
|
- | |||||
| 15 | 5303212535 | Trim-splasher (almd) |
|
- | |||||
| 15 | 5303212534 | Trim-splasher (white) |
|
- | |||||
| 16 | 5303279360 | Shield-b/g |
|
- | |||||
| *51312 | 3204745 | Bushing, Control Shaft |
|
- | |||||
| *51312 | 3018820 | Shield-b/g |
|
- |
