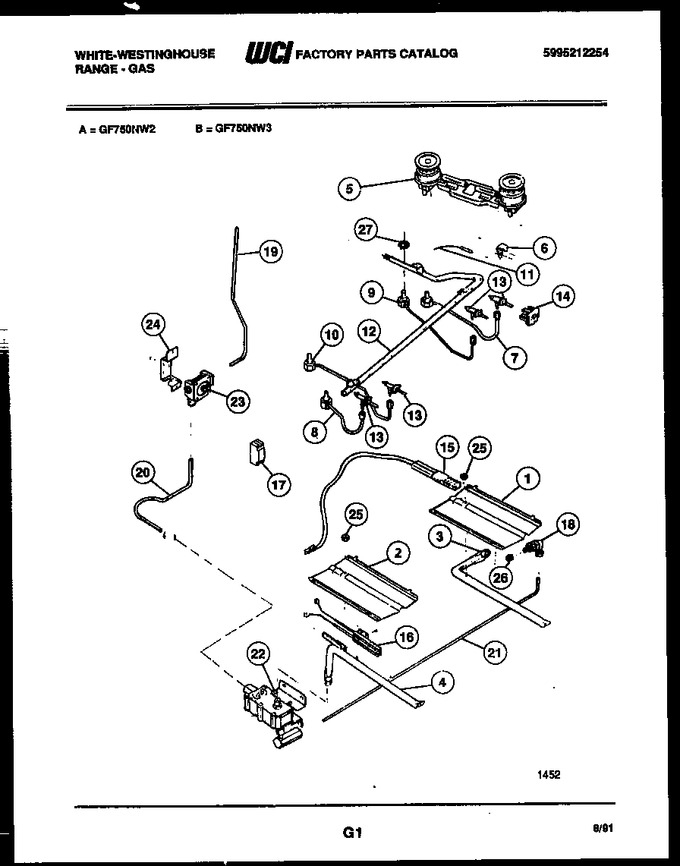

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210379		Baffle, Broil				$ 175.88
2	3131284		Baffle-oven				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	5303131147		Burner-top-double		Appelez-nous	-
6	3016993		Retainer-ignitor		Appelez-nous	-
7	5303271044		Burner-tube-rf		Appelez-nous	-
8	5303271041		Burner-tube-lf		Appelez-nous	-
9	5303271043		Burner-tube-rr		Appelez-nous	-
10	5303271042		Burner-tube-lr		Appelez-nous	-
11	3200276		Base Ignitor (2)		Appelez-nous	-
12	5303271375		Manifold Pipe		Appelez-nous	-
13	5303271680		Valve-top 2 Pos (4)		Appelez-nous	-
14	3131568		Switch-ignitor		Appelez-nous	-
15	5303935068		Ignitor, Broiler Burner   (Replaces: 5308067970)				$ 166.55
16	5303935066		Ignitor, Oven   (Replaces: 5303131300)			Immediately	$ 59.58
17	5303200669		Ignitor-module		Appelez-nous	-
18	5303208640		Mixer Elbow		Appelez-nous	-
19	5303208495		Tube Alum W/ Fit (reg/manifold Pipe)		Appelez-nous	-
20	5303208494		Tube Alum W/ Fit (valve/reg)		Appelez-nous	-
21	5303208493		Tube-alum W/ Fit (valve/mixer)		Appelez-nous	-
22	5303208499		Valve-safety-dual			Immediately	$ 559.67
23	5303280582		Control-regulator		Appelez-nous	-
24	08067934		Bracket-regulator		Appelez-nous	-
25	154079601		Nut   (Replaces: 5303013272)				$ 0.41
26	08068015		Spud-50		Appelez-nous	-
27	3013279		Nut, Special				$ 2.34
*51320	3200277		Bracket-burner Mtg (2)		Appelez-nous	-
22A	3131737		Washer-repair (non-illustrated)				$ 5.59

    View Diagram in Separate Window       Print Part List
