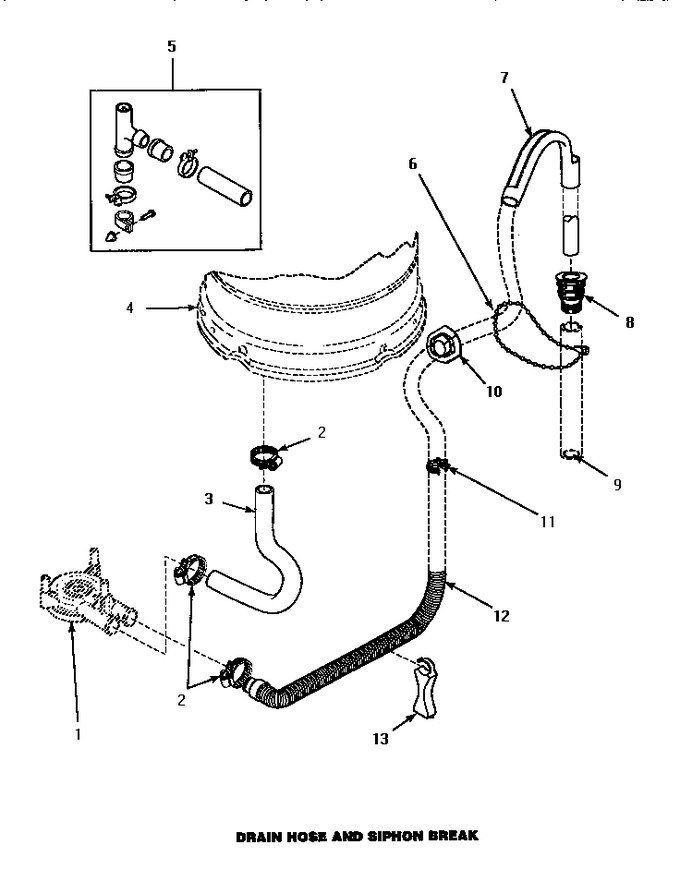

06 - Drain Hose & Siphon Break


07 - Front Panel, Base Assy & Cabinet Assy


08 - Graphic Panel, Ctrl Mtg Plate & Ctrls


09 - Mix Vlv & Mtr Conn Blks/term & Extractor


10 - Mixing Valve Assy


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover & Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Pump Assembly -- (see Motor, Pump And Idler Assembly Page)		Appelez-nous	-
2	WP285655		Clamp, Hose   (Replaces: 36802)			Immediately	$ 7.55
3	35752		Hose,tub To Pump-ddp		Appelez-nous	-
3	35753		Hose,tub To Pump-ddp		Appelez-nous	-
4	Y00000000		See Note Outer Tub -- (see Outer Tub, Cover And Pressure Hose Page)		Appelez-nous	-
5	76660		Siphon Kit   (Replaces: 562P3)			Immediately	$ 119.93
6	33489		Strap, Standpipe Bead		Appelez-nous	-
7	33615		Sleeve, Drain Hose				$ 8.35
8	40008101		Stand Pipe Adapter   (Replaces: 36878)				$ 84.69
9	Y00000000		See Note Standpipe		Appelez-nous	-
10	32219		Relief, Strain				$ 6.95
11	36014		Clip, Retainer-hose				$ 6.95
12	WP40053901		Drain Hose   (Replaces: 37245)			Immediately	$ 61.94
13	35487		Support,hose		Appelez-nous	-
13	36522		Hose Support		Appelez-nous	-
NI	451P3		Drain Hose Extension Kit   (Replaces: 406P3)			Immediately	$ 163.80
