| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
36863P |
|
Pump Assembly |
|
Appelez-nous
|
- |
|
|
|
| 2 |
28808 |
 |
Belt,agitate & Spin |
|
|
Immediately |
$ 22.09 |
|
|
| 3 |
WP3400029 |
 |
Nut (Replaces: 35423) |
|
|
Immediately |
$ 6.98 |
|
|
| 4 |
34791 |
|
Post,mount-motor |
|
Appelez-nous
|
- |
|
|
|
| 5 |
34788 |
|
Mount,motor |
|
Appelez-nous
|
- |
|
|
|
| 6 |
WP27001200 |
 |
Screw-10 16 X.44 (Replaces: Y31645) |
|
|
|
$ 6.91 |
|
|
| 7 |
27171 |
|
Pulley,motor |
|
Appelez-nous
|
- |
|
|
|
| 8 |
35632 |
|
Switch, Motor |
|
Appelez-nous
|
- |
|
|
|
| 9 |
34754 |
|
Motor Shield |
|
|
|
$ 6.95 |
|
|
| 10 |
WP4312464 |
|
Screw (Replaces: 36639) |
|
|
|
$ 6.26 |
|
|
| 11 |
34910 |
|
Motor Assemblies |
|
Appelez-nous
|
- |
|
|
|
| 11 |
201615P |
|
Motor Assemblies (Replaces: 34571) |
|
|
Immediately |
$ 671.21 |
|
|
| 12 |
23750 |
|
Pin,roll |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WPW10139757 |
 |
Nut, Hex Jam 1/4-20l (Replaces: 52566) |
|
|
|
$ 7.16 |
|
|
| 14 |
34890 |
|
Bracket,motor Mount |
|
Appelez-nous
|
- |
|
|
|
| 14 |
36523 |
|
Motor Mounting Bracket |
|
Appelez-nous
|
- |
|
|
|
| 15 |
30620 |
|
Spring,idler Lever Hel |
|
Appelez-nous
|
- |
|
|
|
| 16 |
56156 |
 |
Locknut (Replaces: 28803) |
|
|
|
$ 6.95 |
|
|
| 17 |
31054 |
|
Idler Lever |
|
|
|
$ 8.48 |
|
|
| 18 |
81392 |
 |
Washer |
|
|
Immediately |
$ 6.95 |
|
|
| 19 |
27229 |
 |
Shoulder Bolt |
|
|
Immediately |
$ 6.95 |
|
|
| 20 |
28802P |
 |
Shaft,idler (Replaces: 28802) |
|
|
|
$ 14.59 |
|
|
| 21 |
Y29443 |
|
Washer,felt |
|
Appelez-nous
|
- |
|
|
|
| 22 |
WP23748 |
 |
Ring, Retaining (Replaces: 23748) |
|
|
Immediately |
$ 10.75 |
|
|
| 23 |
WP233520 |
 |
Washer, 501 Id X3/4 Odx (Replaces: 52549) |
|
|
Immediately |
$ 7.16 |
|
|
| 24 |
Y34565 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 25 |
28800P |
 |
Wheel,idler (Replaces: 28800) |
|
|
|
$ 12.66 |
|
|
| 26 |
28849 |
|
Clip,spring |
|
Appelez-nous
|
- |
|
|
|
| 27 |
37366 |
|
Spring, Idler |
|
|
|
$ 1.89 |
|
|
| NI |
258P3 |
|
Kit,capacitor |
|
Appelez-nous
|
- |
|
|
|

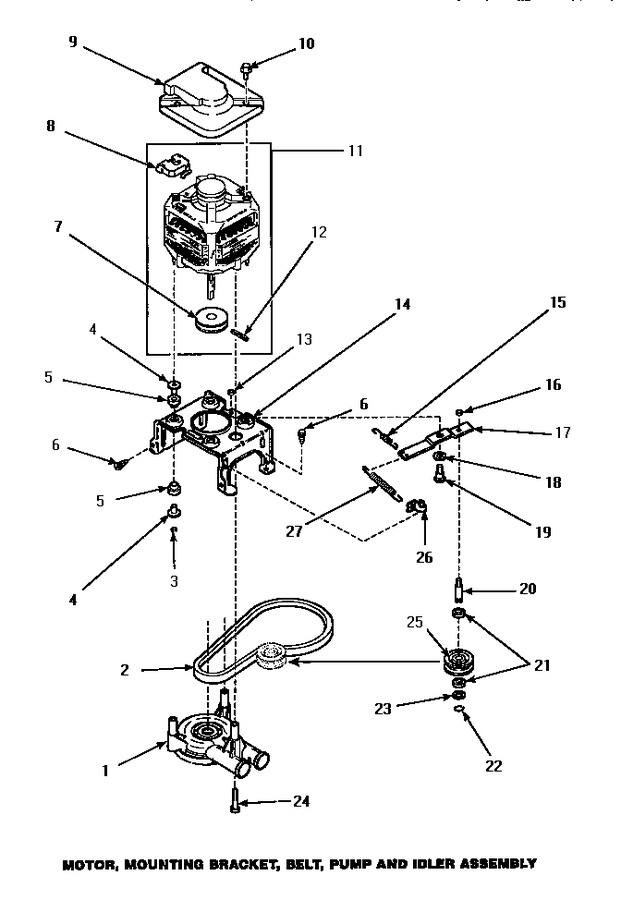

View Diagram in Separate Window
Print Part List
