SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Burner, Manifold And Gas Control


05 - Body Parts


06 - Door Parts


07 - Broiler Drawer Parts

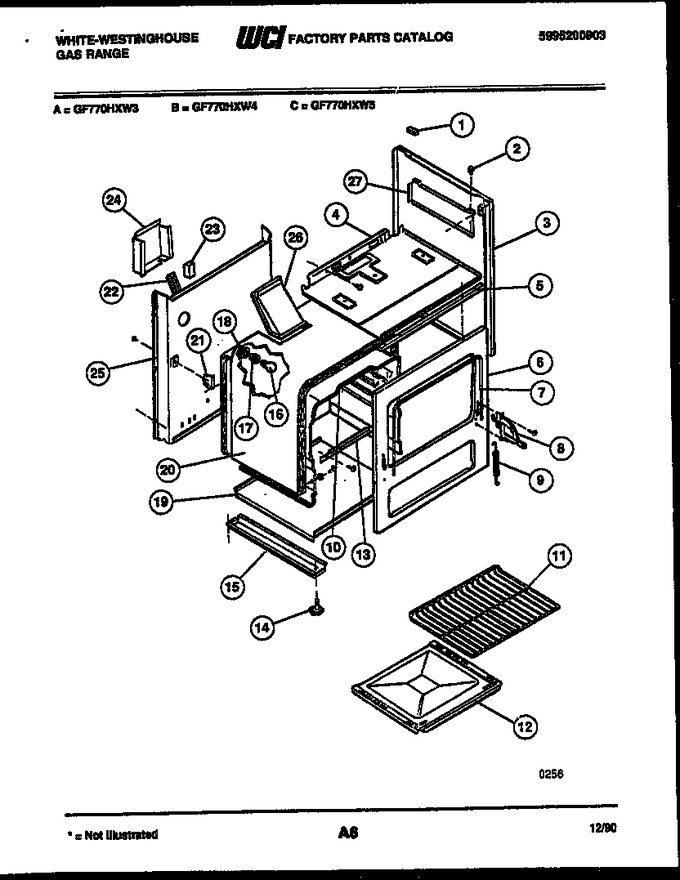

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
3	5303051061		Panel-body Side (white)		Appelez-nous	-
4	3017174		Burner Box Bottom		Appelez-nous	-
5	3131811		Support-control Panel		Appelez-nous	-
6	3205578		Front - Frame		Appelez-nous	-
7	5308008022		Seal,oven Door				$ 124.89
8	5303204670		Hinge-oven Door Rh		Appelez-nous	-
9	5308008028		Spring-oven Door		Appelez-nous	-
10	3018709		Liner-right Side		Appelez-nous	-
11	5303015714		Rack-oven		Appelez-nous	-
12	3018282		Liner Bttm		Appelez-nous	-
13	3131038		Support-oven Bottom		Appelez-nous	-
14	318175510		Screw-leveling   (Replaces: 5303210257)			Immediately	$ 24.26
16	40A15		Bulb, Oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
17	5303009410		Receptacle-oven Light		Appelez-nous	-
18	3051511		Cup, Oven Light				$ 60.22
19	3011645		Bottom - Main		Appelez-nous	-
20	3017171		Insulation-wrapper		Appelez-nous	-
21	3051096		Support,oven Rear		Appelez-nous	-
22	3131046		Channel - Wire		Appelez-nous	-
23	5303209931		Spark Module		Appelez-nous	-
24	08013953		Cover-spark Module		Appelez-nous	-
25	5303013340		Main Back		Appelez-nous	-
26	3017173		Vent Box		Appelez-nous	-
27	5303131053		Shield-burner Box Rh		Appelez-nous	-
*18132	191S018F271		Diagram-wire-(not For Purchase)		Appelez-nous	-
*18132	3934059		Anti-tip Kit		Appelez-nous	-
10A	3018710		Liner-left Side		Appelez-nous	-
10B	3018713		Liner-top		Appelez-nous	-
10C	3018712		Liner-back		Appelez-nous	-
15A	5303210256		Base Rail Lh		Appelez-nous	-
15B	5303210255		Base Rail Rh		Appelez-nous	-
20A	3017172		Insulation - Back		Appelez-nous	-
27A	5303131054		Shield-burner Box Lh		Appelez-nous	-
8A	5303204672		Hinge-oven Door Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
