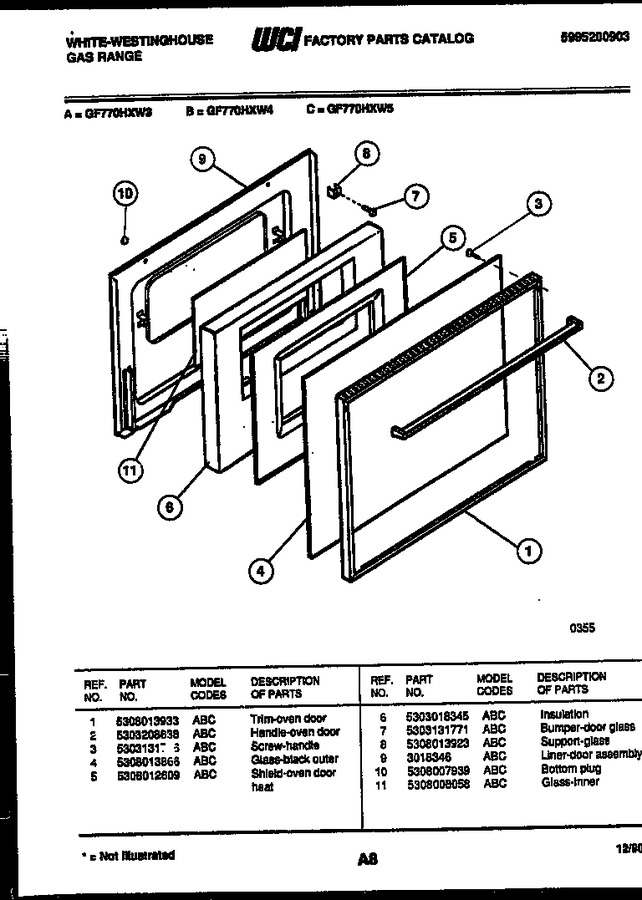

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308013933 | Trim-oven Door |
|
- | |||||
| 2 | 5303208638 | Handle-oven Door |
|
- | |||||
| 3 | 5303131766 | Screw Handle |
|
$ 10.87 | |||||
| 4 | 5308013866 | Glass-black Outer |
|
- | |||||
| 5 | 5308012609 | Shield-oven Door Heat |
|
- | |||||
| 6 | 5303018345 | Insulation |
|
- | |||||
| 7 | 5303131771 | Bumper-door Glass |
|
- | |||||
| 8 | 5308013923 | Support-glass |
|
- | |||||
| 9 | 3018346 | Liner-door Assembly |
|
- | |||||
| 10 | 5308007939 | Bottom Plug |
|
- | |||||
| 11 | 5308008058 | Glass-inner |
|
- |
