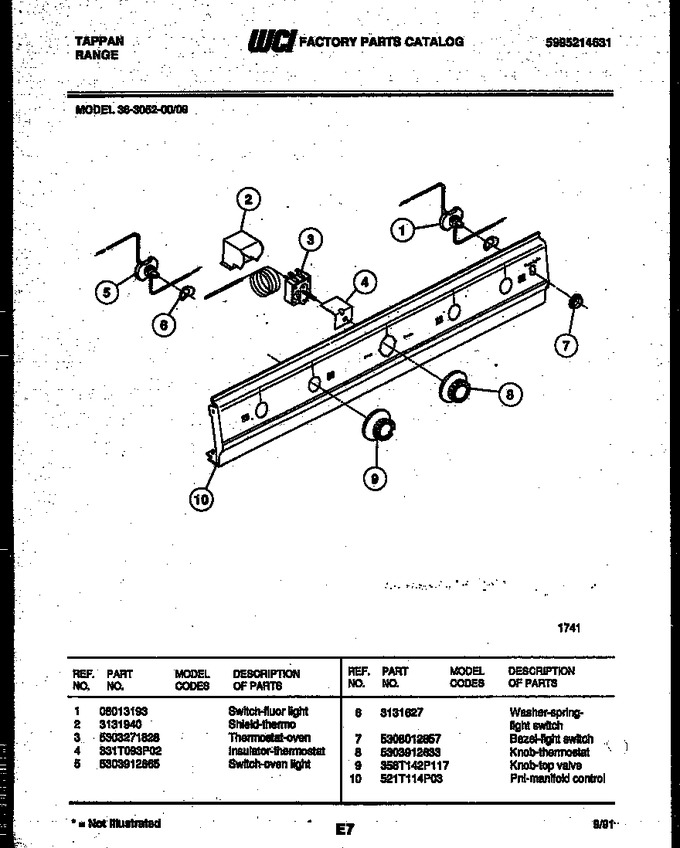

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08013193 | Switch-fluor Light |
|
- | |||||
| 2 | 3131940 | Shield - Thermo |
|
- | |||||
| 3 | 5303271828 | Thermostat-oven |
|
- | |||||
| 4 | 331T093P02 | Insulator - Thermostat |
|
- | |||||
| 5 | 5303912665 | Switch-oven Light |
|
- | |||||
| 6 | 3131627 | Washer - Spring (light Switch) |
|
- | |||||
| 7 | 5308012857 | Bezel-light Switch |
|
- | |||||
| 8 | 5303912633 | Knob-thermostat |
|
- | |||||
| 9 | 358T142P117 | Knob - Top Valve |
|
- | |||||
| 10 | 521T114P03 | Pnl - Manifold Control |
|
- |
