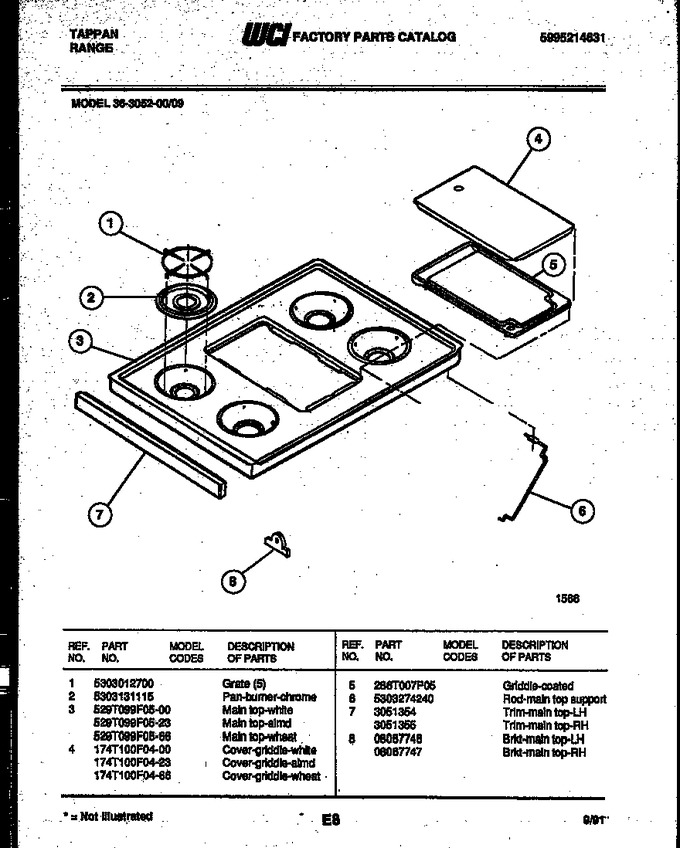

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303012700 | Grate (5) |
|
- | |||||
| 3 | 529T099F05-66 | Main Top (wheat) |
|
- | |||||
| 4 | 174T100F04-66 | Cover, Griddle (wheat) |
|
- | |||||
| 5 | 286T007P05 | Griddle (coated) |
|
- | |||||
| 6 | 5303274240 | Rod-main Top Support |
|
- | |||||
| 7 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 8 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 7A | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| 8A | 08067747 | Brkt, Main Top (rh) |
|
- |
