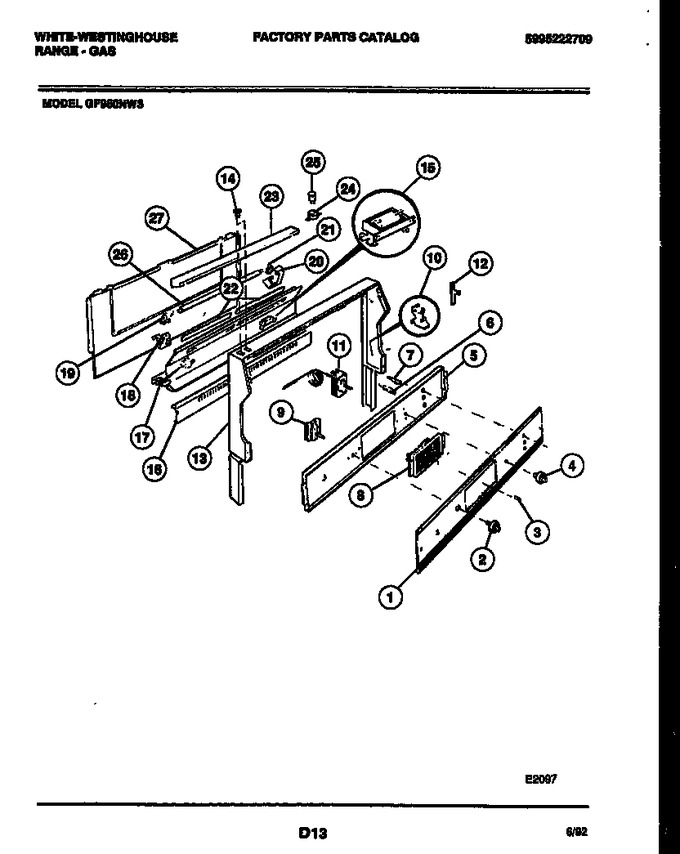

02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212754 | Glass-control Panel |
|
- | |||||
| 2 | 5303212757 | Knob-sel Sw |
|
- | |||||
| 3 | 5303212756 | Knob-clock (3) |
|
- | |||||
| 4 | 5303212758 | Knob-thermostat |
|
- | |||||
| 5 | 5303274090 | Plate-instr Mtg |
|
- | |||||
| 6 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 7 | 3201728 | Indicator Light-red |
|
- | |||||
| 8 | 5303212752 | Clock |
|
- | |||||
| 9 | 5303212678 | Switch Selector |
|
- | |||||
| 10 | 5303131237 | Support, Backguard |
|
- | |||||
| 11 | 5303271746 | Thermostat |
|
$ 414.28 | |||||
| 12 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 13 | 5303208903 | Trim - Wrapper |
|
- | |||||
| 14 | 5303208662 | Switch-rocker |
|
- | |||||
| 15 | 5303051115 | Ballast |
|
- | |||||
| 16 | 3131241 | Trim-vent |
|
- | |||||
| 17 | 5303212815 | Trim Splasher (almd) |
|
- | |||||
| 18 | 3131576 | Bracket-fl Mtg (lh) |
|
- | |||||
| 19 | 3051223 | Receptacle-fl Light (lh) |
|
- | |||||
| 20 | 3131577 | Bracket-fl Mtg (rh) |
|
- | |||||
| 21 | 3051222 | Receptacle-fl Light (rh) |
|
- | |||||
| 22 | 3131145 | Glass-work Light |
|
- | |||||
| 23 | 3201738 | Shield-fluor Light |
|
- | |||||
| 24 | 5303282715 | Receptacle-stater |
|
- | |||||
| 25 | 3206218 | Stater |
|
$ 54.08 | |||||
| 26 | 3131275 | Bulb-fluorescent |
|
$ 49.40 | |||||
| 27 | 5303279360 | Shield-rear Wall |
|
- | |||||
| *44538 | 3204745 | Bushing, Control Shaft |
|
- |
