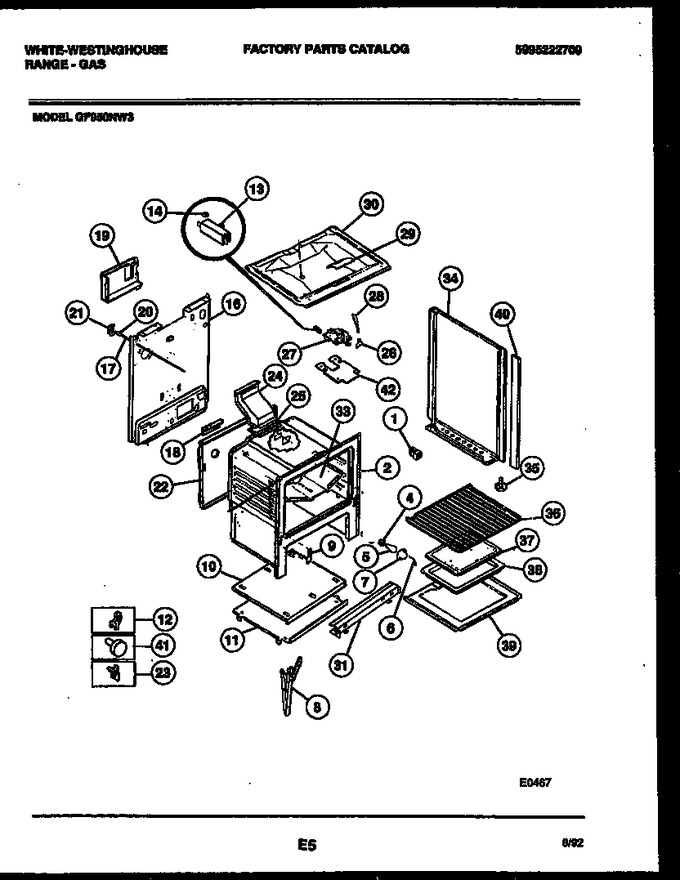

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 4 | 3014073 | Socket-oven Light |
|
- | |||||
| 5 | 5303208582 | Light Bulb, Oven |
|
- | |||||
| 6 | 3204585 | Wire Glass Retainer |
|
- | |||||
| 7 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 8 | 5303274815 | Channel-dr Hinge (2) |
|
- | |||||
| 9 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 10 | 5303270104 | Shield-heat Upper |
|
- | |||||
| 11 | 3131313 | Shield-heat-lower |
|
- | |||||
| 12 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 13 | 3131672 | Switch, Latching |
|
- | |||||
| 14 | 08067776 | Fastener-push-on |
|
- | |||||
| 16 | 3203082 | Back-main |
|
- | |||||
| 17 | 5303209316 | Rod Light |
|
- | |||||
| 20 | 5303202622 | Switch, Door |
|
- | |||||
| 21 | 5303131289 | Bracket-light Switch |
|
- | |||||
| 22 | 316014301 | Shield-heat |
|
- | |||||
| 23 | 3011813 | Clip-wire |
|
$ 14.79 | |||||
| 24 | 3131931 | Flue |
|
- | |||||
| 25 | 08067965 | Gasket-flue |
|
- | |||||
| 26 | 3203218 | Knob-latch |
|
- | |||||
| 27 | 5303015453 | Latch-door |
|
$ 172.04 | |||||
| 28 | 5303131357 | Handle-latch |
|
$ 37.33 | |||||
| 29 | 08067757 | Cover Plate |
|
- | |||||
| 30 | 3011597 | Burner Box |
|
- | |||||
| 31 | 5303271047 | Shield-main Front |
|
- | |||||
| 33 | 3200836 | Shield-heat Baffle |
|
- | |||||
| 34 | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 35 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 36 | 5303131973 | Rack, Oven |
|
- | |||||
| 37 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 38 | 5303013568 | Pan-broiler |
|
- | |||||
| 39 | 5303212540 | Bottom, Oven |
|
- | |||||
| 40 | 5303051326 | Trim-vertical Bodyside |
|
- | |||||
| 41 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 42 | 3131314 | Shield-oven-top |
|
- | |||||
| *44563 | 3934056 | Anti-tip Kit |
|
- | |||||
| *44563 | 3200834 | Shield-heat, Body Side |
|
- | |||||
| *44563 | 3131304 | Insulation-top |
|
- | |||||
| *44564 | 08010570 | Fastener, Leveling Leg Tee Nut |
|
- | |||||
| *44564 | 3203529 | Diagram Wiring (not For Purchase.) |
|
- | |||||
| 11A | 08067992 | Shield, Wool (non-illustrated) |
|
- | |||||
| 14A | 08067978 | Stud-spacer (non-illustrated) |
|
- | |||||
| 14B | 5304534377 | Cord, Power (non-illustrated) (Replaces: 3202006) |
|
$ 26.85 | |||||
| 17A | 316014401 | Shield-rear Wall (non-illustrated) |
|
- | |||||
| 25A | 3131593 | Shield, Bimetal Latch (non-illustrated) |
|
- | |||||
| 25B | 08013188 | Screw, Set, 10-24 X 3/16, Latch Knob |
|
- | |||||
| 34A | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 39A | 3014226 | Support-oven Bottom, (non-illustrated) |
|
- | |||||
| 39B | 08067961 | Fastener-power Cord |
|
- | |||||
| 39C | 3204582 | Insulation-back (non-illustrated) |
|
- | |||||
| 39D | 08067973 | Insulation-front Frame (non-illustrated) |
|
$ 51.74 | |||||
| 39E | 3200833 | Insulation-wrap (non-illustrated) |
|
- | |||||
| 39F | 08068018 | Shield, Wire (non-illustrated) |
|
- | |||||
| 41A | 3051162 | Glide Utility Drawer (non-illustrated) |
|
Immediately | $ 8.22 | ||||
| 41B | 316282700 | Screw-bottom (2) (non-illustrated) (Replaces: 3131732) |
|
$ 9.93 |
