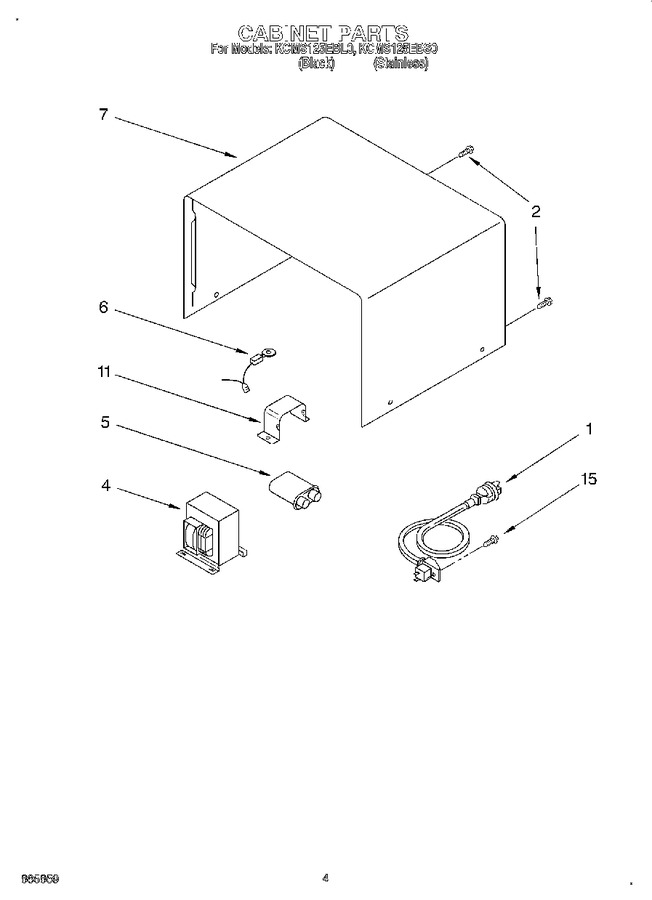

03 - Cabinet
04 - Door And Latch
05 - Control Panel
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4357406 | Power Cord |
|
- | |||||
| 2 | 4313665 | Screw |
|
- | |||||
| 4 | 4313109 | Transformer |
|
- | |||||
| 4 | 4357320 | Screw |
|
- | |||||
| 5 | 4313100 | Capacitor |
|
- | |||||
| 6 | 4365500 | Screw |
|
- | |||||
| 6 | 4313101 | Rectifier |
|
$ 29.78 | |||||
| 7 | 4313123 | Outer Cabinet |
|
- | |||||
| 11 | 4313114 | Bracket, Capacitor |
|
- | |||||
| 15 | 4312922 | Screw |
|
- |
