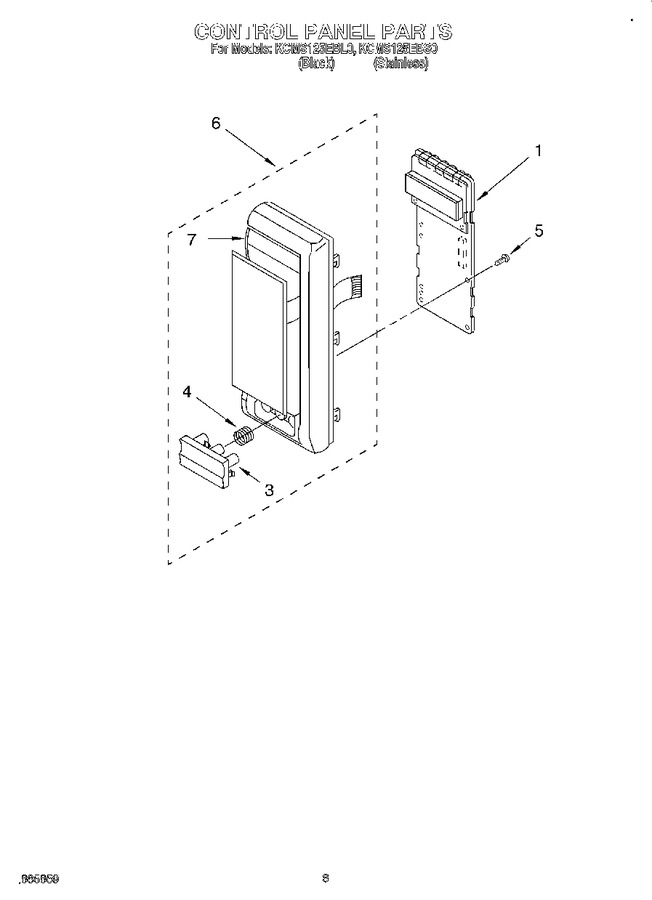

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313174 | Microcomputer |
|
- | |||||
| 3 | 4313198 | Push Button |
|
- | |||||
| 4 | 4313631 | Spring, Button |
|
- | |||||
| 5 | 4313632 | Screw |
|
- | |||||
| 6 | 4313197 | Control Panel (stainless) |
|
- | |||||
| 6 | 4313201 | Control Panel (black) |
|
- | |||||
| 7 | 4313176 | Window |
|
- |
