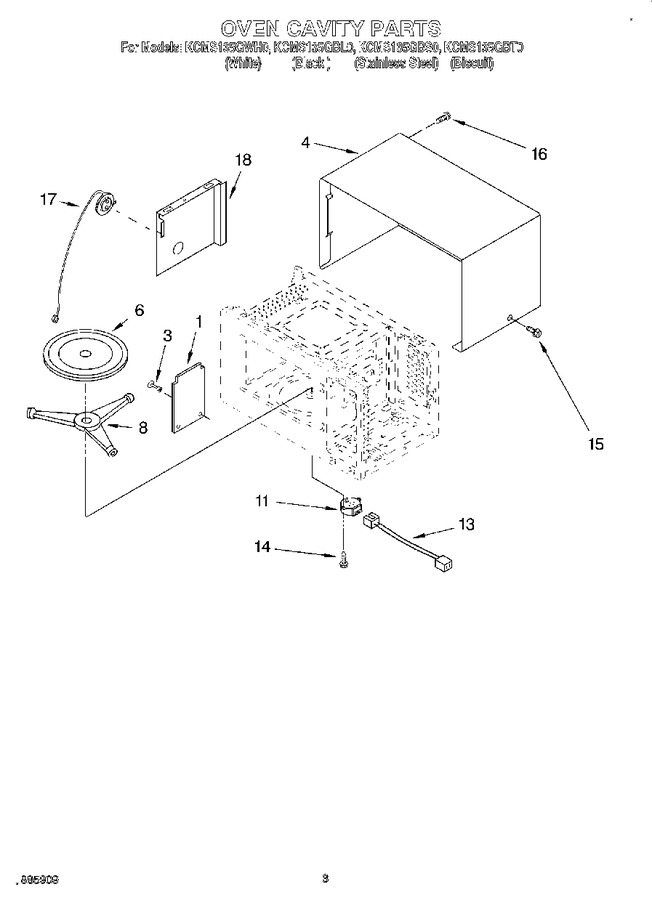

03 - Oven Cavity
04 - Latch Board
05 - Oven Interior, Literature
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359777 | Canopy |
|
$ 38.18 | |||||
| 3 | WP4359508 | Rivet (Replaces: 4359508) |
|
$ 8.28 | |||||
| 4 | 4359941 | Outer Case (biscuit) |
|
- | |||||
| 4 | 4359852 | Outer Case (black) |
|
- | |||||
| 4 | 4359779 | Outer Case (white) |
|
- | |||||
| 4 | 4359853 | Outer Case (stainless Steel) |
|
- | |||||
| 6 | WPW10267856 | Tray, Glass (Replaces: 4359780) |
|
$ 63.44 | |||||
| 8 | 4359782 | Support, Turntable |
|
- | |||||
| 11 | 4359499 | Motor, Turntable |
|
- | |||||
| 13 | 4359784 | Lead Wire Assy |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | 4358829 | Screw (black & Ss Models) |
|
- | |||||
| 15 | W11245710 | Screw (white Model) (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 4358192 | Screw |
|
- | |||||
| 17 | 4359568 | Sensor |
|
- | |||||
| 18 | 4359806 | Sensor Duct |
|
- |
