SELECT A DIAGRAM

01 - Door


02 - Control Panel


03 - Oven Cavity


04 - Latch Board


05 - Oven Interior, Literature


06 - Base Plate

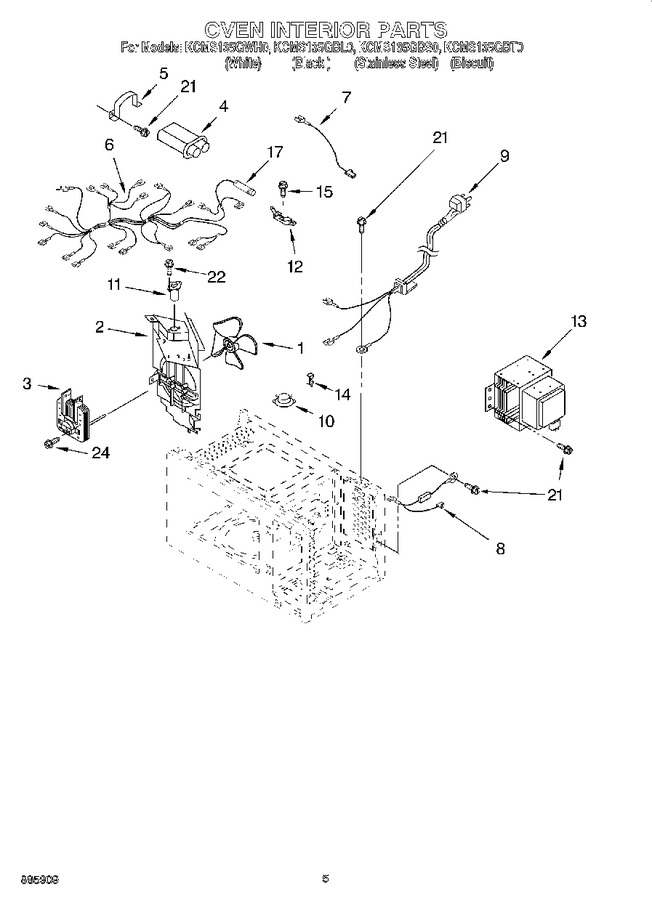

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358379		Propeller		Appelez-nous	-
2	4359786		Guide, Suction		Appelez-nous	-
3	4359787		Motor, Fan		Appelez-nous	-
4	4359221		H.v. Capacitor		Appelez-nous	-
5	4359797		H.v.c Bracket		Appelez-nous	-
6	4359790		Leadwire Assembly		Appelez-nous	-
7	4359501		H.v. Cable Ass`y		Appelez-nous	-
8	WP8205489		H.v. Diode Cable   (Replaces: 4359502)				$ 58.19
9	4359793		Power Cord		Appelez-nous	-
10	4359164		Thermostat		Appelez-nous	-
11	4359741		Lamp, Baseless				$ 37.00
12	4359789		Holder, Fuse		Appelez-nous	-
13	4359119		Magnetron		Appelez-nous	-
14	4359794		Holder		Appelez-nous	-
15	4358451		Screw		Appelez-nous	-
17	WP8183507		Fuse   (Replaces: 4359121)				$ 18.33
21	4344826		Screw   (Replaces: 4358489)				$ 14.31
22	4358381		Screw		Appelez-nous	-
24	D505295		Screw   (Replaces: 4359792)				$ 1.47
	LIT4359627		Use & Care Guide		Appelez-nous	-
	LIT4359693		24``		Appelez-nous	-
	LIT4359692		27``		Appelez-nous	-
	LIT4359691		30``		Appelez-nous	-
	LIT4359672		Tech Sheet Installation/instructions Trim Kits		Appelez-nous	-
	LIT4359632		Cook Guide Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
