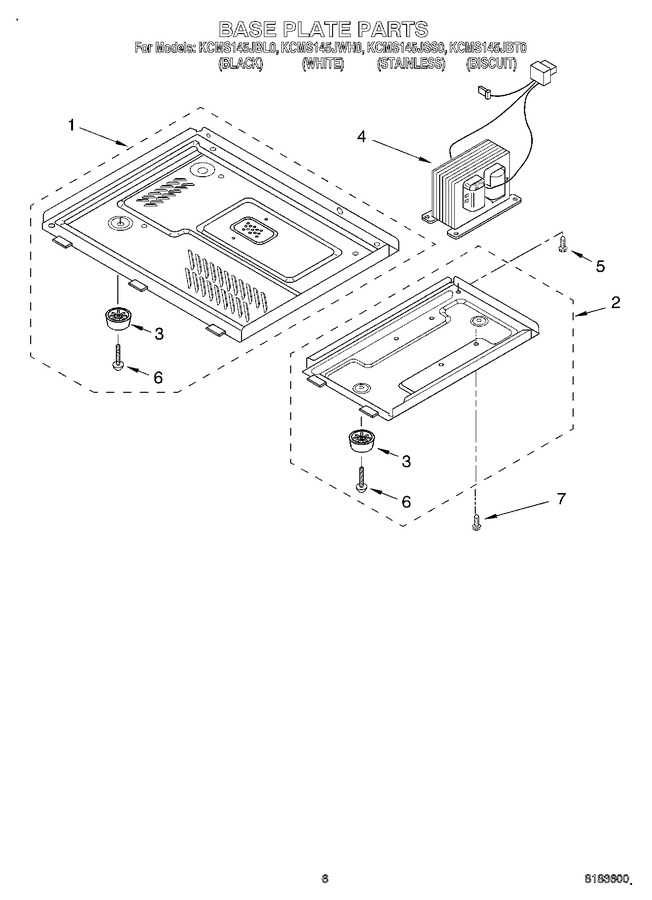

06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8172002 | Base Plate (l) |
|
- | |||||
| 2 | 8172001 | Base Plate (r) |
|
- | |||||
| 3 | 4358487 | Leg |
|
- | |||||
| 4 | 8171809 | Transformer |
|
- | |||||
| 5 | 4358192 | Screw |
|
- | |||||
| 6 | 4358381 | Screw |
|
- | |||||
| 7 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 7 | 8172131 | Hardware Pack (incl In Trim Kit) |
|
- |
