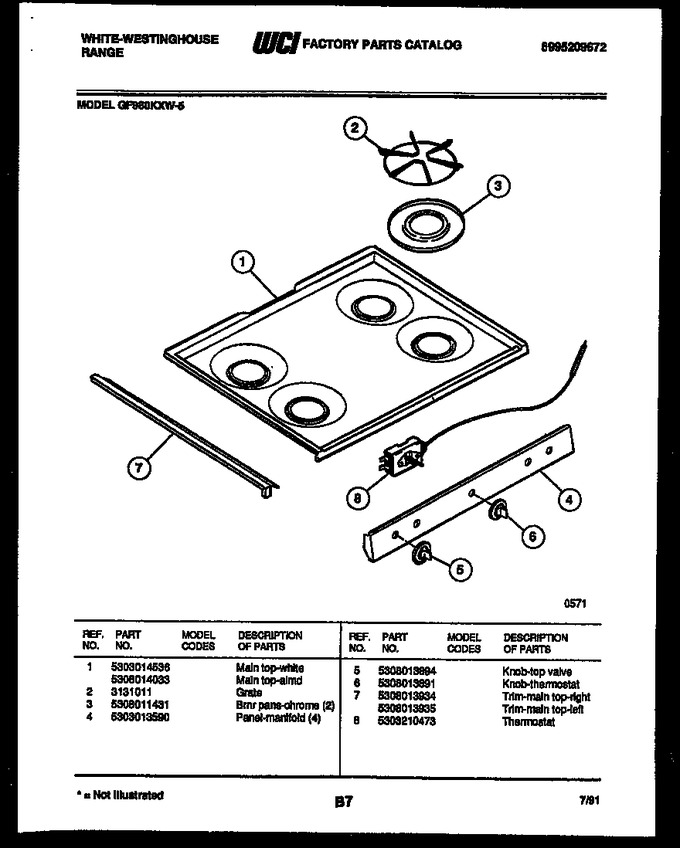

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308014033 | Main-top (almd) |
|
- | |||||
| 2 | 3131011 | Grate |
|
- | |||||
| 3 | 5308011431 | Brnr Pans-chrome (2) |
|
- | |||||
| 4 | 5303013590 | Panel-manifold (4) |
|
- | |||||
| 5 | 5308013894 | Knob-top Valve |
|
- | |||||
| 6 | 5308013891 | Knob-thermostat |
|
- | |||||
| 7 | 5308013934 | Trim-main Top-right |
|
- | |||||
| 8 | 5303210473 | Thermostat |
|
- | |||||
| 7A | 5308013935 | Trim-main Top-left |
|
- |
