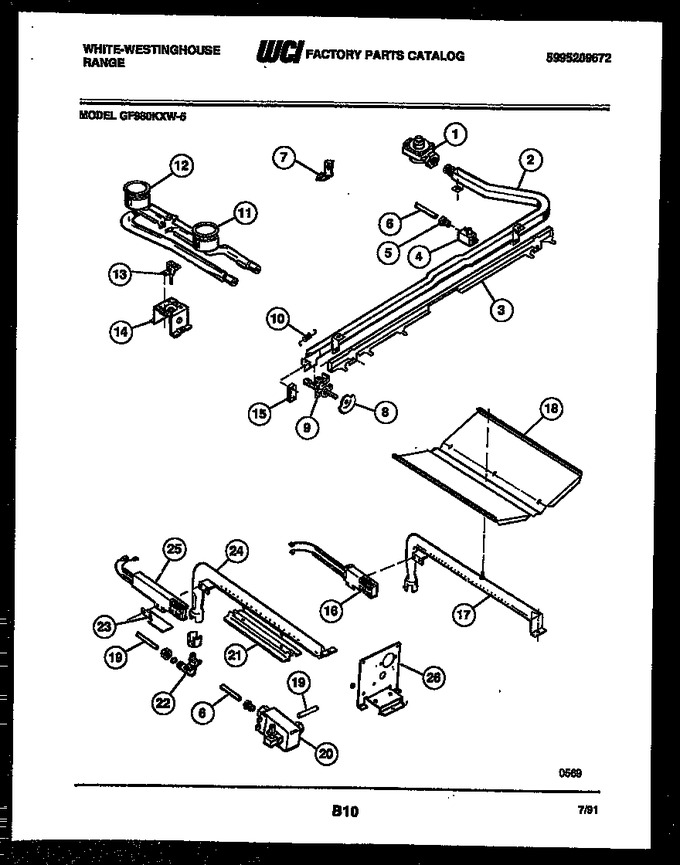

07 - Burner, Manifold And Gas Control


08 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007974		Pressure Regulator				$ 309.02
2	5308013906		Manifold-pipe		Appelez-nous	-
3	3131856		Bar-slide		Appelez-nous	-
4	5303131099		Valve-shut Off		Appelez-nous	-
5	3131064		Nut 3/8 Loxit		Appelez-nous	-
6	08068028		Tube - Oven Feed		Appelez-nous	-
7	5300009126		Clip		Appelez-nous	-
8	5303131859		Cam-top Burner (4)		Appelez-nous	-
9	3205761		Valve-top Burners (4)		Appelez-nous	-
10	5303131096		Spring - Slide Bar		Appelez-nous	-
11	5303131080		Burner-front Top (2)				$ 76.13
12	5303131079		Burner-rear Top (2)				$ 129.78
13	3203971		Igniter-top (2)		Appelez-nous	-
14	3203964		Supt - Top Burner (2)		Appelez-nous	-
15	5303131094		Switch-micro Front Mtg		Appelez-nous	-
16	12400035		Igniter-oven   (Replaces: 5308009420)			Immediately	$ 60.44
17	5303131860		Burner-oven Bake		Appelez-nous	-
18	5308011508		Baffle Bake Burner		Appelez-nous	-
19	3131866		Tube Broil Feed		Appelez-nous	-
20	5303017415		Valve-safety		Appelez-nous	-
21	3131803		Baffle Broiler Burner		Appelez-nous	-
22	08011470		Pin Elbow Mixer		Appelez-nous	-
23	3131871		Shield Igniter				$ 7.93
24	5303210389		Burner-broiler		Appelez-nous	-
25	5303016211		Igniter-broiler		Appelez-nous	-
26	3051096		Support - Oven Bottom		Appelez-nous	-
