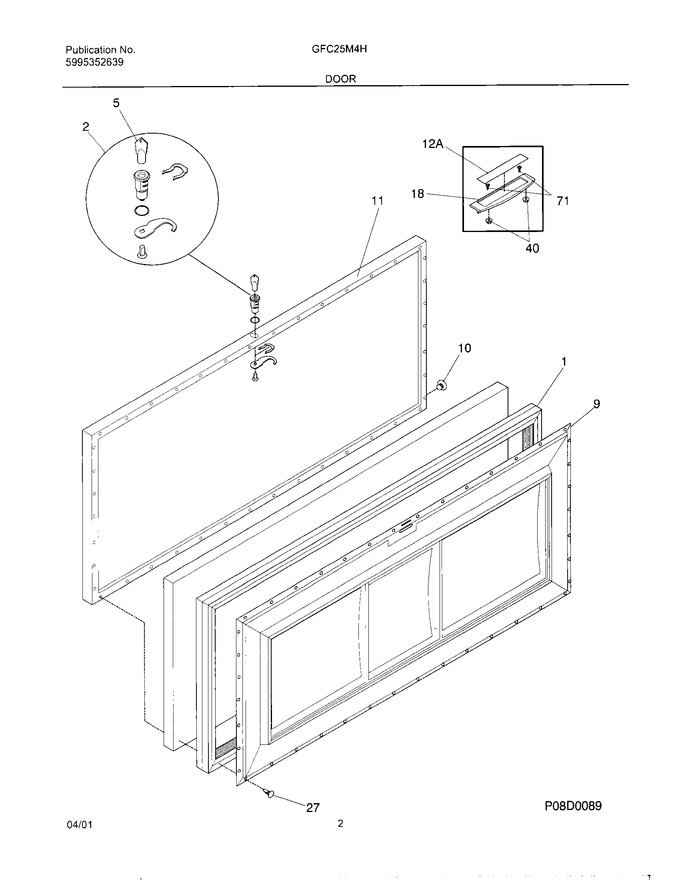

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216469311		Gasket-door, White   (Replaces: 216469301)				$ 187.21
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
9	216072604		Panel-inner Lid, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216032402		Panel-outer Door/lid,white		Appelez-nous	-
12	5303270969		Insert-handle		Appelez-nous	-
18	5309948646		Handle		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
40	5309948647		Fastener, Handle		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
NI	5303917276		Insulation				$ 330.91
