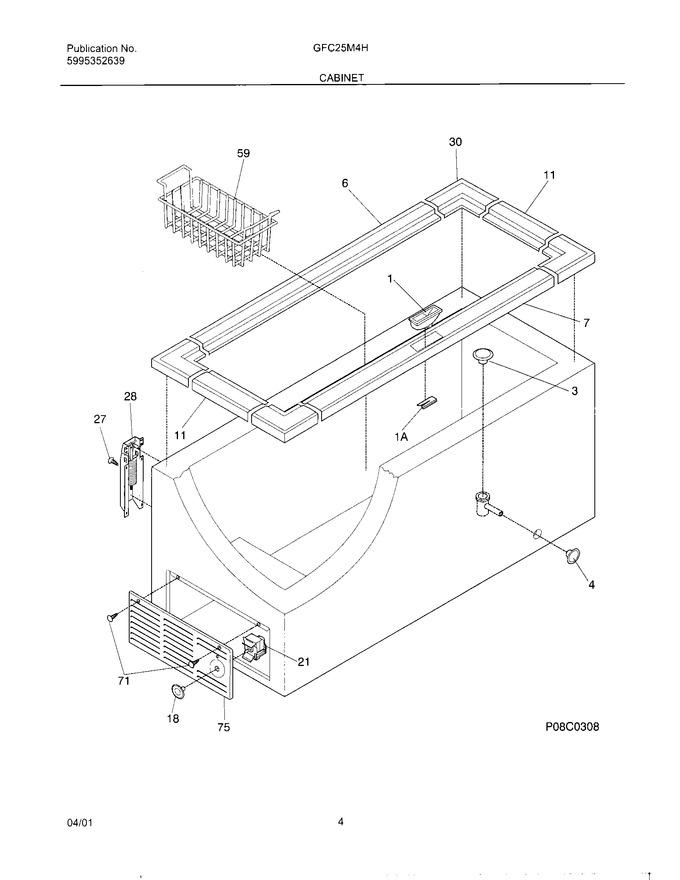

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303208488		Latch, Door		Appelez-nous	-
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216111400		Breaker-hinge Side, White		Appelez-nous	-
7	216112000		Breaker-lock Side, White		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
18	216707200		Knob-control Cold				$ 44.10
21	216714600		Control-temperature				$ 132.30
28	216035400		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
59	216080300		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
