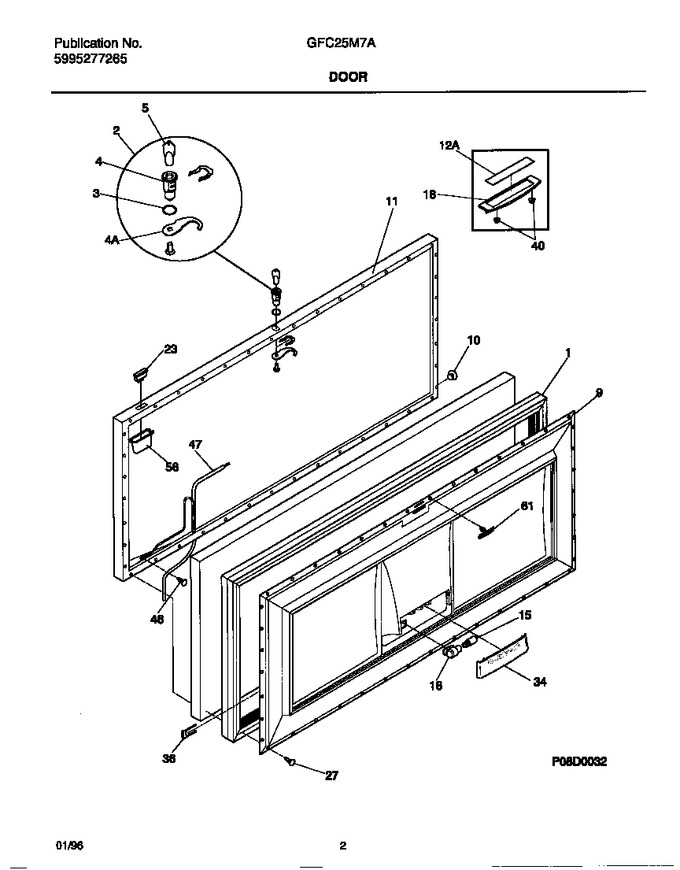

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216469311		Gasket-door   (Replaces: 216085600)				$ 187.21
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	5300300791		Hook, Lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216072504		Panel-inner Lid, White		Appelez-nous	-
10	08009395		Plug, Hole		Appelez-nous	-
11	216032401		Panel-outer Door, White		Appelez-nous	-
12	5303270969		Insert-handle		Appelez-nous	-
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket, Light/lamp		Appelez-nous	-
18	5309948646		Handle		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Screw, Panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216206100		Harness-wire		Appelez-nous	-
56	5308037857		Sealing Cap		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
