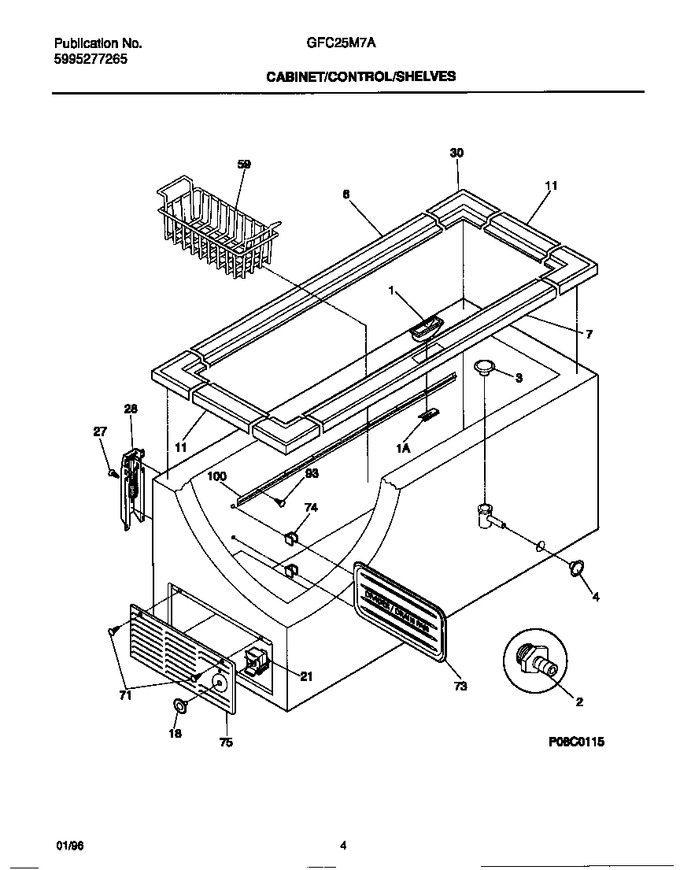

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
1	5303208488		Latch, Door		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	216111400		Breaker-hinge Side, White		Appelez-nous	-
7	216112000		Breaker-lock Side, White		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
18	216034505		Knob, Control, White		Appelez-nous	-
21	216356800		Control, Temperature		Appelez-nous	-
27	5309950602		Screw Hinge				$ 5.30
28	216035400		Hinge		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
59	216080700		Basket, Lower, (2) (not Illustrated)				$ 84.70
59	216080300		Basket, Upper, (2)		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
73	216128200		Divider-drain Pan		Appelez-nous	-
74	5306594584		Support, Shelf				$ 19.80
75	216034301		Access Panel				$ 103.01
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
100	216205100		Track-basket		Appelez-nous	-
*83480	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
