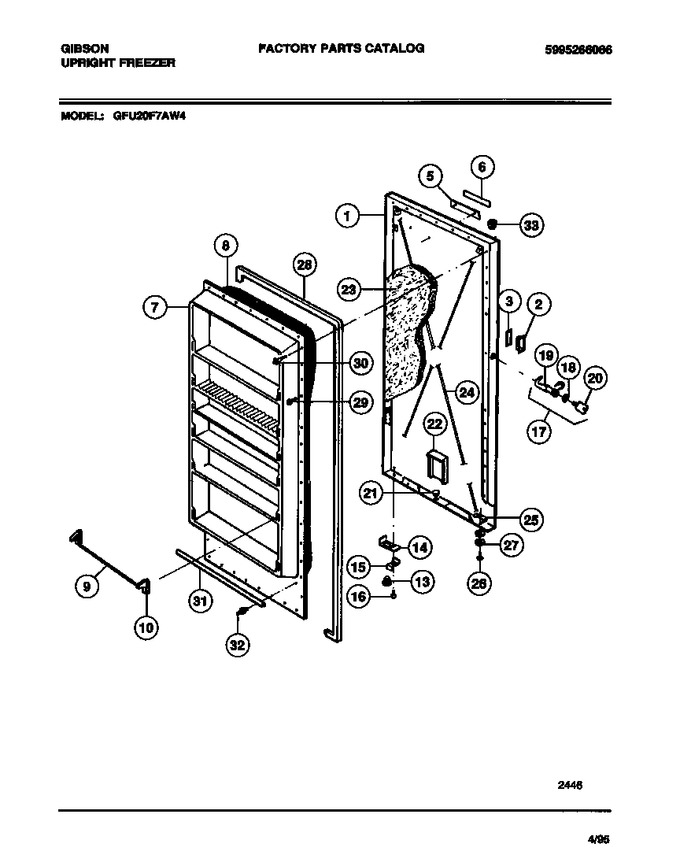

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011602		Panel-door-white		Appelez-nous	-
2	216140200		Handle		Appelez-nous	-
3	08009392		Gasket		Appelez-nous	-
5	5303208918		Frame		Appelez-nous	-
6	5303285573		Nameplate		Appelez-nous	-
7	216048804		Panel-inner		Appelez-nous	-
8	09950831		Insulation		Appelez-nous	-
9	3205348		Shelf Front Narrow (5)		Appelez-nous	-
10	216339800		End Cap-rh-narrow (5)		Appelez-nous	-
10	5303925377		End Cap-lh-narrow (5)   (Replaces: 216339900)			Immediately	$ 46.07
13	5303210403		Bearing, Bottom		Appelez-nous	-
14	5300091170		Reinforcement, Door Stop		Appelez-nous	-
15	08016354		Stop-door				$ 36.07
16	08005520		Screw-door Stop		Appelez-nous	-
17	5303925107		Lock-complete		Appelez-nous	-
18	5300114366		Washer-lock		Appelez-nous	-
19	216013800		Lock Hook		Appelez-nous	-
20	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
21	5309950074		Valve Breather (2)				$ 12.48
22	5303212700		Air Duct Breather		Appelez-nous	-
23	5303007739		Insulation, Door		Appelez-nous	-
24	08037986		Wire, Adjusting		Appelez-nous	-
25	05879859		Bracket		Appelez-nous	-
26	5300057906		Screw, Bracket		Appelez-nous	-
27	09950839		Washer, Bracket (2)		Appelez-nous	-
28	3206261		Gasket-door (white)				$ 254.52
29	216858001		Screw, Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
30	08009384		Screw Panel (24)		Appelez-nous	-
31	5308016356		Gasket		Appelez-nous	-
32	5303212828		Clip, Gasket (5)				$ 16.63
33	5303297490		Bearing, Top		Appelez-nous	-
