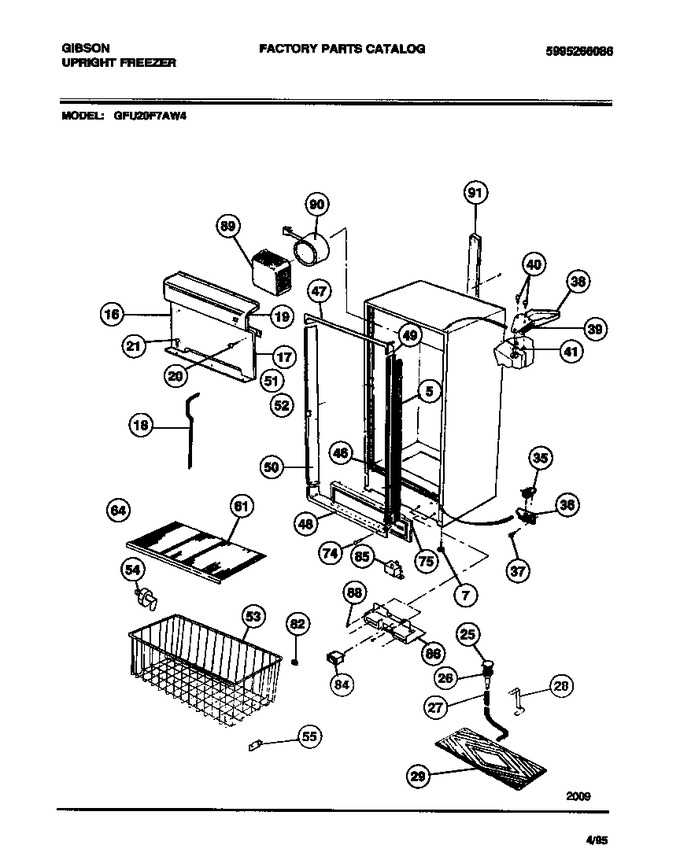

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation |
|
- | |||||
| 7 | 205363701 | Leg Leveler-adj (4) |
|
- | |||||
| 16 | 216084200 | Panel-evaporator |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 216204901 | Gasket Panel |
|
$ 9.08 | |||||
| 19 | 5303208663 | Plug Control |
|
- | |||||
| 20 | 216858001 | Screw-panel To Liner (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21 | 5303285470 | Screw-panel To Evaporator (3) |
|
- | |||||
| 25 | 5306593887 | Screen-drain |
|
- | |||||
| 26 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 27 | 216269601 | Hose |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 5308016387 | Defrost Drain Pan |
|
- | |||||
| 35 | 5303210424 | Closer-door |
|
- | |||||
| 36 | 216247400 | Hinge-bottom |
|
- | |||||
| 37 | 154518001 | Screw-hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 38 | 5303212912 | Cover, Hinge-white |
|
- | |||||
| 39 | 5303212935 | Hinge, Top |
|
- | |||||
| 40 | 5303212937 | Screw-hinge |
|
- | |||||
| 41 | 5303294372 | Nut Insert |
|
$ 43.68 | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 216085900 | Breaker, Top |
|
- | |||||
| 48 | 216085800 | Breaker, Bottom |
|
- | |||||
| 49 | 216107501 | Breaker, Hinge Side |
|
- | |||||
| 50 | 216107601 | Breaker, Lock Side |
|
- | |||||
| 51 | 216013600 | Support, Lock |
|
- | |||||
| 52 | 216013700 | Clip Support |
|
- | |||||
| 53 | 216076700 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 61 | 216267001 | Shelf-lower (2) |
|
- | |||||
| 61 | 216266901 | Shelf-upper (3) |
|
- | |||||
| 64 | 216261100 | Support Self (24) |
|
- | |||||
| 74 | 5303302714 | Pin Base Trim (2) |
|
- | |||||
| 75 | 216294415 | Toe Grille-black |
|
- | |||||
| 82 | 5305878546 | Bumper Basket (2) |
|
$ 7.23 | |||||
| 84 | 5303017178 | Switch |
|
- | |||||
| 85 | 08016367 | Buzzer |
|
- | |||||
| 86 | 08016369 | Bracket-alarm |
|
- | |||||
| 88 | 08037851 | Screw |
|
$ 3.57 | |||||
| 89 | 3205349 | Housing-sensor |
|
- | |||||
| 90 | 5308037992 | Sensor Assembly |
|
$ 167.58 | |||||
| 91 | 216009000 | Cover-harness |
|
- | |||||
| *62520 | 08037937 | Spacer-top Breaker (2) |
|
- | |||||
| *62521 | 5303212683 | Wire Harness-alarm |
|
- |
