SELECT A DIAGRAM

01 - Cooktop, Burner And Grate


02 - Sealed Gas Assembly


03 - Burner Box, Gas Valves, And Switches


04 - Oven Door


05 - Internal Oven


06 - Control Panel


07 - Oven, Literature


08 - Utility Drawer And Rail


09 - Convection Fan


10 - Wiring Harness

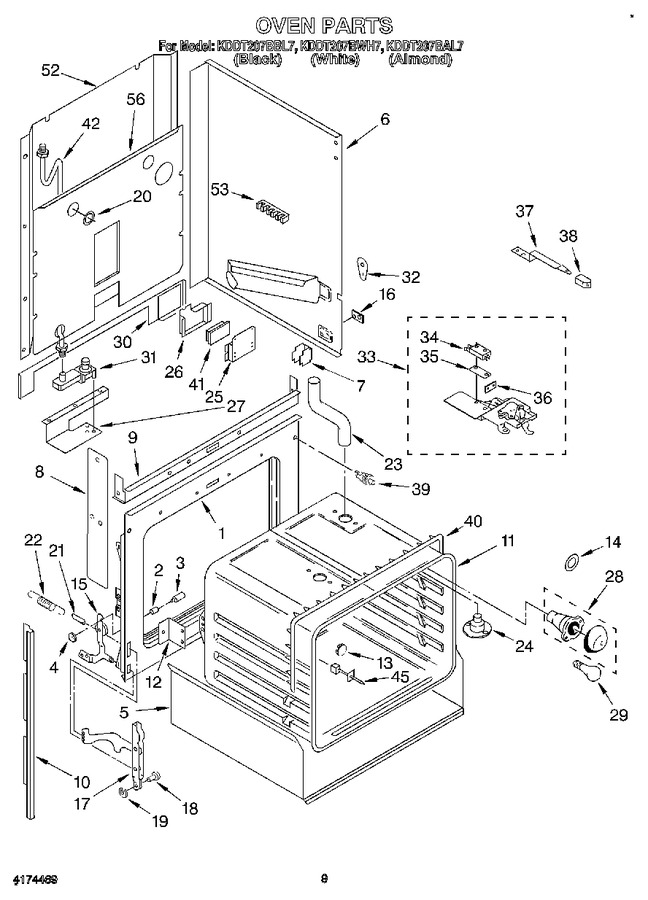

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3176719		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3185944		Insulation Tray		Appelez-nous	-
6	3185957		Side Wrapper L.h.		Appelez-nous	-
6	3185954		Side Wrapper R.h.		Appelez-nous	-
7	WP488729		Screw, No.8 X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
8	311256		Insulation Baffle (2)		Appelez-nous	-
8	3148442		Screw, No.6-20x1 1/4 (2)		Appelez-nous	-
9	WP488729		Screw, No.8 X 1/2 (4)   (Replaces: 3148107)			Immediately	$ 7.01
9	3183796		Baffle, Top Insulation		Appelez-nous	-
10	310689		Side Trim (r.h.)		Appelez-nous	-
10	WP488729		Screw, No.8 X 1/2 (8)   (Replaces: 3148107)			Immediately	$ 7.01
10	310685		Side Trim L.h.		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
11	3182031		Oven (30`` Pyro)		Appelez-nous	-
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
13	3185086		Plug Button		Appelez-nous	-
14	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
15	3185663		Hinge, Ear (left Side)		Appelez-nous	-
15	3185662		Hinge, Ear (right Side)		Appelez-nous	-
16	310659		Plate, Side Panel (2)		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
17	3185664		Channel Arm (2)				$ 54.97
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
20	4159035		Bushing		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
23	3184741		Tube, Vent Extension		Appelez-nous	-
23	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
24	3186684		Smoke Eliminator		Appelez-nous	-
24	3179117		Screw (2)		Appelez-nous	-
25	3184733		Bracket, Spark Module		Appelez-nous	-
26	3184727		Cover, Spark Module		Appelez-nous	-
27	3187289		Bracket, Regulator		Appelez-nous	-
27	254225		Screw,		Appelez-nous	-
28	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
28	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	3184735		Panel, Kick		Appelez-nous	-
31	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
31	3187205		Pressure Regulator		Appelez-nous	-
32	3179117		Screw (2)		Appelez-nous	-
32	310662		Coverplate		Appelez-nous	-
33	3187356		Latch Assembly		Appelez-nous	-
33	311056		Screw (2)		Appelez-nous	-
34	98106		Screw (2)		Appelez-nous	-
34	3178672		Safety Switch		Appelez-nous	-
35	309245		Insulator, Switch		Appelez-nous	-
36	WP488729		Screw No.8 X 1/2   (Replaces: 3148107)			Immediately	$ 7.01
36	309258		Screw No.6 X 3/8		Appelez-nous	-
36	313035		Terminal, Shield		Appelez-nous	-
37	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
37	310825		Latch, Handle		Appelez-nous	-
38	3184039		Knob, Latch Handle		Appelez-nous	-
38	3183294		Screw, 8 X 5/16		Appelez-nous	-
39	310345		Switch, Door				$ 94.86
40	3185197		Seal		Appelez-nous	-
41	WP4454392		Spark Module   (Replaces: 3187409)				$ 290.32
41	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
41	247326		Screw		Appelez-nous	-
42	3184853		Tube, Regulator		Appelez-nous	-
45	3148440		Sensor		Appelez-nous	-
52	WP488729		Screw, No.8 X 1/2 (6)   (Replaces: 3148107)			Immediately	$ 7.01
52	3182052		Panel, Back		Appelez-nous	-
53	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
53	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
53	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
56	3187218		Liner Adhesive		Appelez-nous	-
56	310435		Insulation, Oven		Appelez-nous	-
56	3149328		Insulation, Top		Appelez-nous	-
56	3185960		Cover, Rear		Appelez-nous	-
56	WP488729		Screw, No.8 X 1/2 (12)   (Replaces: 3148107)			Immediately	$ 7.01
56	310433		Insulation, Wrap		Appelez-nous	-
	LIT3187214		Instruction Insert		Appelez-nous	-
	LIT3187001		Tech Sheet		Appelez-nous	-
	LIT3186508		Installation Instructions		Appelez-nous	-
	LIT3150693		Cookbook		Appelez-nous	-
	LIT3188265		Use & Care Guide		Appelez-nous	-
	LIT3183987		Guide, Auto Set		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
