Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3183571 Drawer, Utility Appelez-nous -
2 3185163 Bracket, Mounting Appelez-nous -
2 WP488729 Screw (12)   (Replaces: 3148107) In-Stock Immediately $ 7.01

3 3147603 Seal, Foam (4) Appelez-nous -
4 3185227 Glass, Drawer Front (almond) Appelez-nous -
4 3185226 Glass, Drawer Front (black) Appelez-nous -
4 3185228 Glass, Drawer Front (white) Appelez-nous -
5 310423 Fastener (2) Appelez-nous -
5 WP488729 Screw (3)   (Replaces: 3148107) In-Stock Immediately $ 7.01

5 3185131 Frame, Outer Appelez-nous -
6 309133 Handle, Drawer (screw, Black (3)) Appelez-nous -
6 WP355515 Handle, Drawer (screw, White (3))   (Replaces: 355515) Special Order $ 6.90

6 3185208 Handle, Drawer (almond) Appelez-nous -
6 3185206 Handle, Drawer (white) Appelez-nous -
6 3185207 Handle, Drawer (black) Appelez-nous -
7 3186695 Panel, Back Appelez-nous -
8 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

8 3183441 Bracket Appelez-nous -
9 WPW10058460 Foot, Range (2)   (Replaces: 312701) In-Stock Immediately $ 7.07

10 3185141 Cap, Front (right Hand) Appelez-nous -
10 3185142 Cap, Front (left Hand) Appelez-nous -
11 3185144 Support, Outer Drawer Appelez-nous -
12 3185147 Support, Inner Drawer Appelez-nous -
13 WP488729 Track, Drawer (screw (11))   (Replaces: 3148107) In-Stock Immediately $ 7.01

13 3185211 Track, Drawer (right Hand) Appelez-nous -
13 3185210 Track, Drawer (left Hand) Appelez-nous -
14 4454406 Baffle, Drip Appelez-nous -
14 WP488729 Screw (3)   (Replaces: 3148107) In-Stock Immediately $ 7.01

15 WP488729 Screw (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

15 3184735 Panel, Back Appelez-nous -
16 3147757 Protector, Edge Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

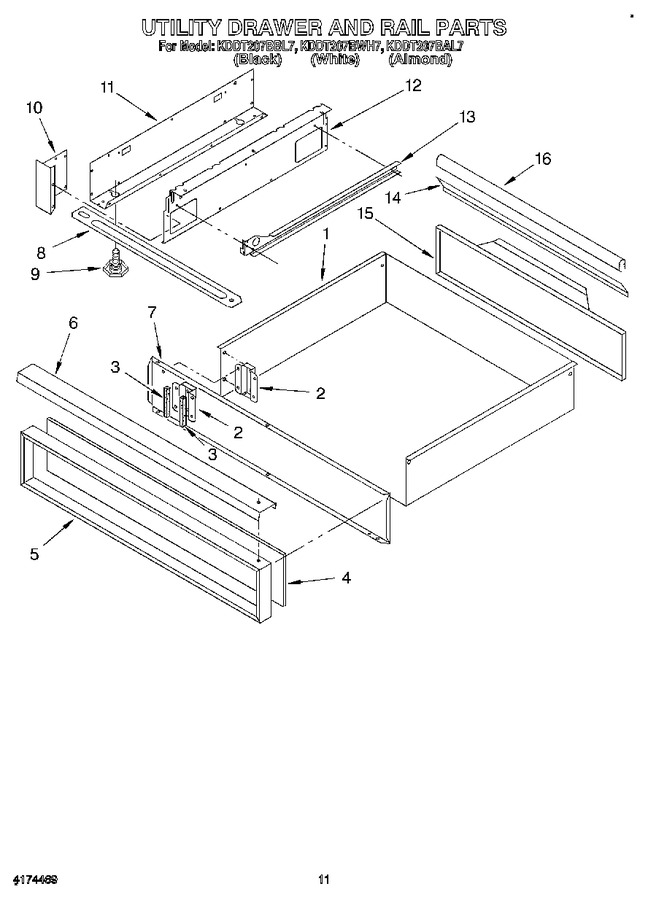

Diagram for KDDT207BBL7
