SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Drawer Parts
06 - Body Parts
07 - Burner, Manifold And Gas Control
SELECT A DIAGRAM
New Model Search:

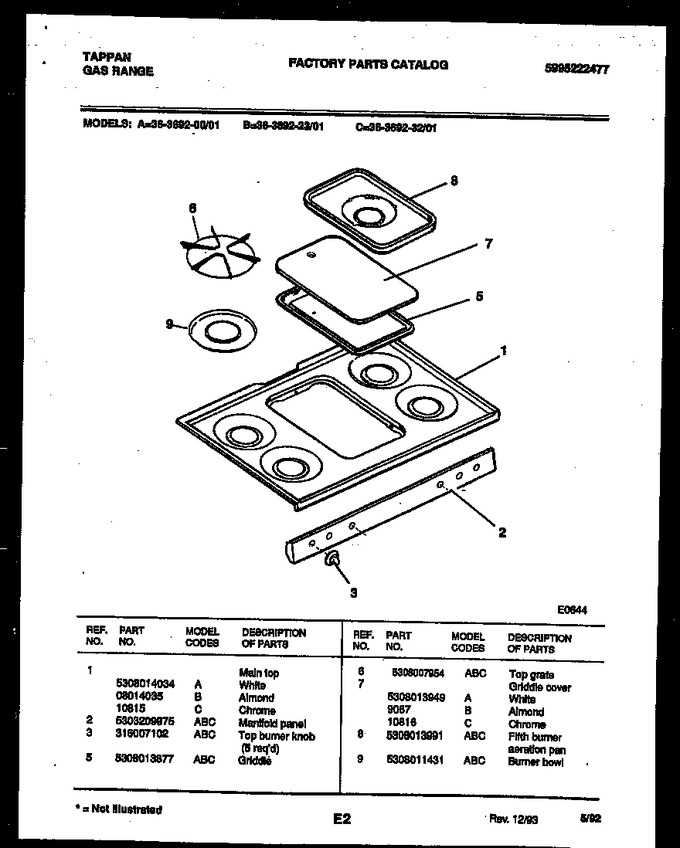

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308014034 | Main Top, White |
|
- | |||||
| 2 | 5303209975 | Manifold Panel |
|
- | |||||
| 3 | 316007102 | Top Burner Knob (5 Req`d) |
|
- | |||||
| 5 | 5308013877 | Griddle |
|
- | |||||
| 6 | 5308007954 | Top Grate |
|
- | |||||
| 7 | 5308013949 | Griddle Cover-white |
|
- | |||||
| 8 | 5308013991 | Fifth Burner Aeration Pan |
|
- | |||||
| 9 | 5308011431 | Burner Bowl |
|
- |
