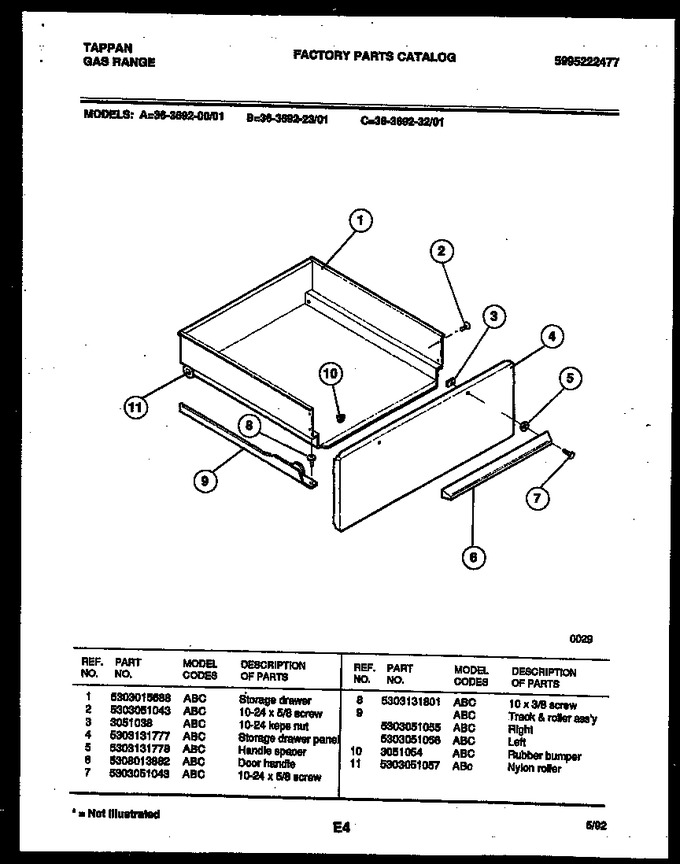

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015688 | Storage Drawer |
|
- | |||||
| 2 | 5303051043 | 10-24 X 5/8 Screw |
|
- | |||||
| 3 | 3051038 | 10-24 Keps Nut |
|
- | |||||
| 4 | 5303131777 | Storage Drawer Panel |
|
- | |||||
| 5 | 5303131778 | Handle Spacer |
|
- | |||||
| 6 | 5308013882 | Door Handle |
|
- | |||||
| 7 | 5303051043 | 10-24 X 5/8 Screw |
|
- | |||||
| 8 | 5303131801 | 10 X 3/8 Screw |
|
- | |||||
| 9 | 5303131801 | 10 X 3/8 Screw |
|
- | |||||
| 10 | 3051054 | Rubber Bumper |
|
- | |||||
| 11 | 5303051057 | Nylon Roller |
|
- | |||||
| 9A | 5303131801 | 10 X 3/8 Screw |
|
- |
