01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts

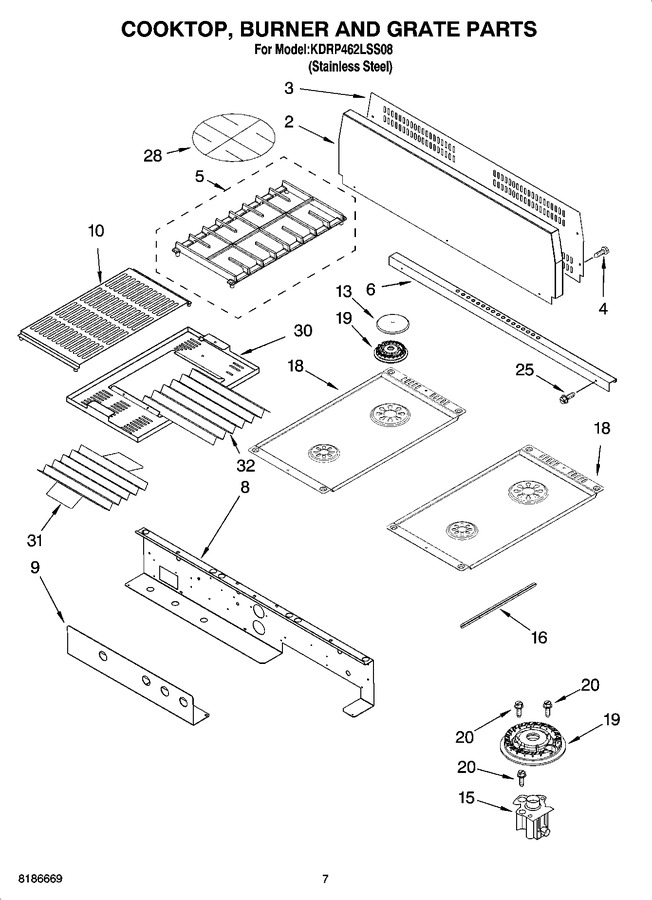

06 - Cooktop, Burner And Grate Parts


07 - Burner Box, Gas Valves, And Switches


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10157567		Backsplash		Appelez-nous	-
3	9762603		Support, Backsplash		Appelez-nous	-
4	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
5	4457149		Grate, Burner		Appelez-nous	-
6	8284851		Trim, Island		Appelez-nous	-
8	8301056		Support, Control Panel		Appelez-nous	-
9	8301041		Cover, Control Panel		Appelez-nous	-
10	4457151		Grate, Grill		Appelez-nous	-
13	WP8284669		Cap, Burner (6k (2))   (Replaces: 8284669)			Immediately	$ 64.79
13	4455243		Cap, Burner (14k (2))				$ 41.37
15	4456920		Holder, Orifice Includes Orifice (auxillary (2))		Appelez-nous	-
15	WPW10155786		Holder, Orifice Includes Orifice (turbo (2))   (Replaces: 4456622)			Immediately	$ 102.16
16	4454974		Support Rail (r.h.& L.h.)		Appelez-nous	-
18	9760865		Cooktop, Black		Appelez-nous	-
19	4455979		Burner Head 14k (auxillary (2))				$ 28.52
19	4455849		Burner Head 14k (turbo (2))				$ 47.68
20	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 6.42
25	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
28	4455109		Plate, Simmer				$ 52.31
30	8284918		Frame, Wave Tray		Appelez-nous	-
31	8284919		Plate, Wave		Appelez-nous	-
32	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
32	8284917		Plate, Wave Tray		Appelez-nous	-
