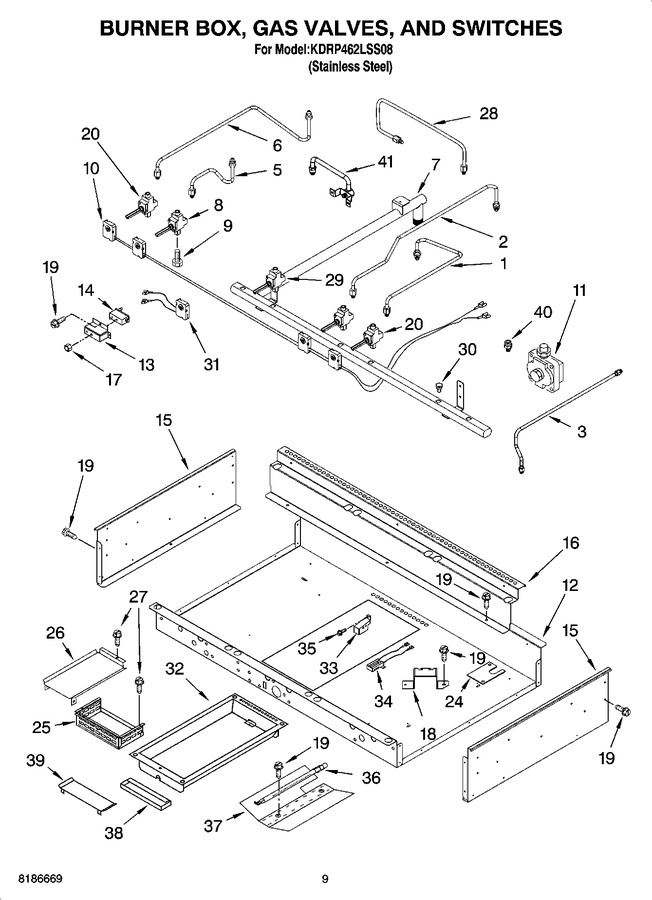

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300231 | Tubing, Gas Burner - Rf |
|
- | |||||
| 2 | 8300230 | Tubing, Gas Burner - Rr |
|
- | |||||
| 3 | 8301252 | Tube, Manifold To Regulator |
|
- | |||||
| 5 | 8300187 | Tubing, Gas Burner - Lf |
|
- | |||||
| 6 | 8300188 | Tubing, Gas Burner - Lr |
|
- | |||||
| 7 | 8301045 | Manifold |
|
- | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 7 | WP4450118 | Nut (includes Items 9 & 30) (Replaces: 4450118) |
|
$ 7.16 | |||||
| 8 | 4456818 | Valve, Burner (turbo) |
|
$ 231.30 | |||||
| 9 | 8523704 | Bolt, Valve |
|
- | |||||
| 10 | 4457317 | Burner Switch & Harness Assembly |
|
$ 95.43 | |||||
| 10 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 291.80 | ||||
| 12 | 4457090 | Burner Box |
|
- | |||||
| 13 | 8301705 | Bracket, Griddle Valve |
|
- | |||||
| 14 | 8301058 | Valve, Griddle |
|
- | |||||
| 15 | 8285606 | Side, Burner Box (left Hand) |
|
- | |||||
| 15 | 8285607 | Side, Burner Box (right Hand) |
|
- | |||||
| 16 | 9759139 | Support, Rear |
|
- | |||||
| 17 | WP488130 | Nut, Hex (Replaces: 488130) |
|
$ 6.27 | |||||
| 18 | 3192811 | Bracket, Burner |
|
- | |||||
| 19 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 20 | WP4456816 | Valve, Burner Auxillary Shelf (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 24 | 4455922 | Cover, Panel |
|
- | |||||
| 25 | 8301292 | Box, Burner Lower |
|
- | |||||
| 26 | 8284960 | Guard, Rear Spill |
|
- | |||||
| 27 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 28 | 8301066 | Tube, Grill |
|
- | |||||
| 29 | 4456819 | Valve, Gas Grill |
|
$ 65.38 | |||||
| 30 | 8284796 | Plug, Manifold |
|
- | |||||
| 31 | 9760722 | Harness, Switch Grill |
|
- | |||||
| 32 | 8284787 | Module, Grill |
|
- | |||||
| 33 | 8284968 | Bracket, Ignitor |
|
- | |||||
| 34 | 8284941 | Ignitor, Grill |
|
$ 98.51 | |||||
| 35 | 3400855 | Screw |
|
- | |||||
| 36 | 8285052 | Log Burner, Grill |
|
- | |||||
| 37 | 8284900 | Deflector |
|
- | |||||
| 38 | 8284791 | Tray, Drip |
|
- | |||||
| 39 | 8285030 | Guard, Spill |
|
- | |||||
| 40 | 4453116 | Adapter, 1/2`` Male |
|
$ 153.80 | |||||
| 40 | 4453115 | Adapter, 1/2`` Female |
|
$ 108.60 | |||||
| 41 | 4456499 | Assy, Outlet Tube |
|
- |
