Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303280293 Control - Regul Appelez-nous -
2 5303272435 Manifold Pipe Appelez-nous -
3 316032000 Switch-igniter, (4) Special Order $ 58.70

4 316031800 Valve - Top 3 Pos (4) Appelez-nous -
5 5304506427 Burner-top Front (2)   (Replaces: 316039002) Special Order $ 101.63

6 5304506426 Burner-top Rear (2)   (Replaces: 316039003) Special Order $ 100.05

7 3200276 Base, Igniter (2) Appelez-nous -
8 3016993 Retainer-igniter Appelez-nous -
9 3203458 Tube, Alum 3/8 Appelez-nous -
10 3203459 Valve-safety Special Order $ 303.64

11 3131438 Bracket, Valve Appelez-nous -
12 3131439 Burner-oven Special Order $ 204.59

13 5303935066 Igniter-oven   (Replaces: 5303131300) In-Stock Immediately $ 59.58

14 3203265 Baffle,oven Burner Appelez-nous -
15 154079601 Nut   (Replaces: 5303013272) Special Order $ 0.41

16 5303200669 Spark Module Appelez-nous -
17 3018603 Brkt - Oven Brnr Supt Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

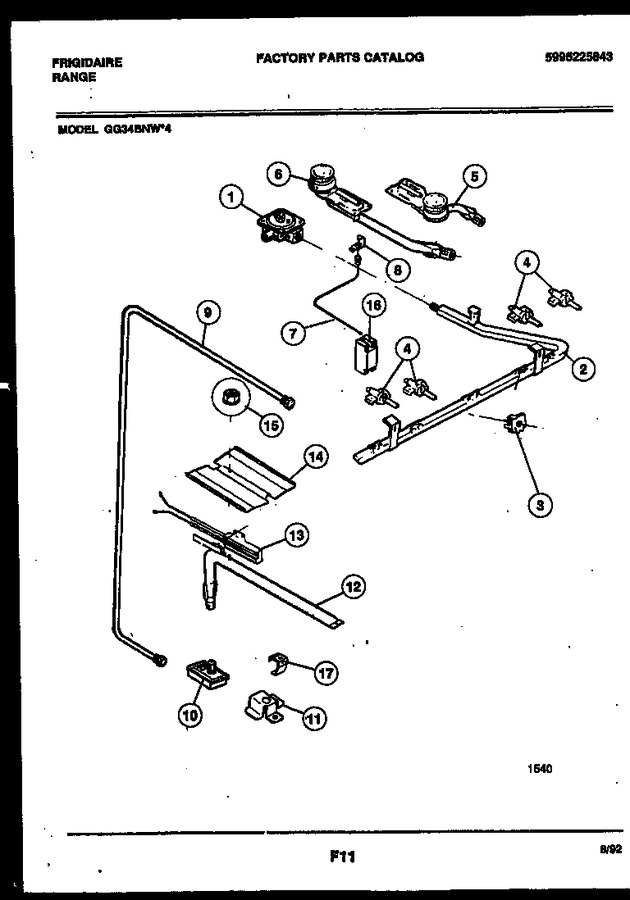

Diagram for GG34BNW4
