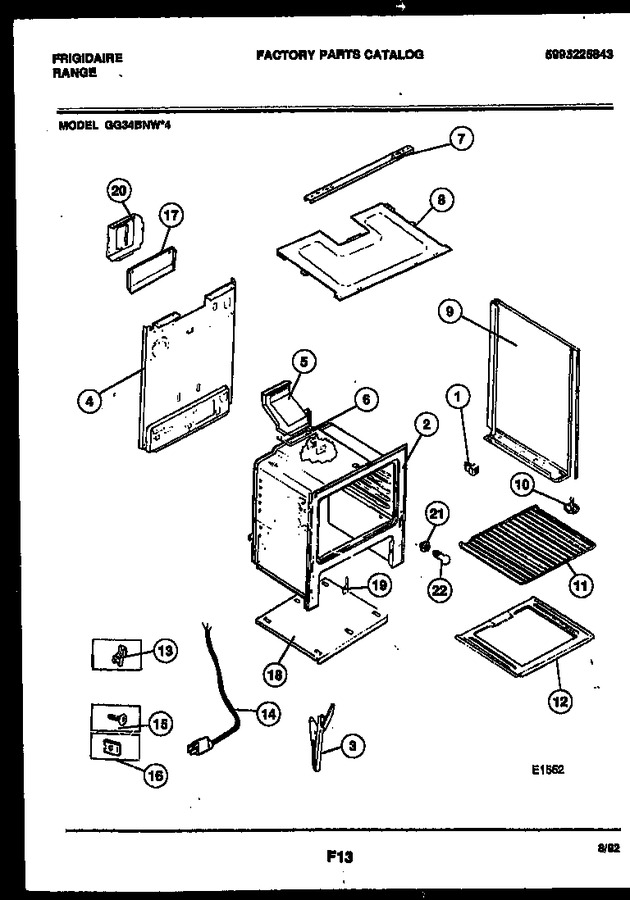

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer,bodyside				$ 3.62
3	316007001		Channel-dr Hinge (2)				$ 234.55
4	3203082		Back-main		Appelez-nous	-
5	3131904		Flue		Appelez-nous	-
6	08067965		Gasket-flue		Appelez-nous	-
7	3203441		Channel-burner Supt		Appelez-nous	-
8	3204962		Burner Box		Appelez-nous	-
9	5303269518		Pnl-b/s-rh-white		Appelez-nous	-
10	5303203397		Screw, Leveling (4)				$ 14.49
11	5303281625		Rack Oven		Appelez-nous	-
12	5303212540		Bottom, Oven		Appelez-nous	-
13	5303284616		Clip-thermo Bulb				$ 9.86
14	3203006		Cord-power		Appelez-nous	-
15	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
16	3203010		Fstnr (8 U Type)   (Replaces: 5303012323)				$ 14.89
17	3131348		Shield-flue		Appelez-nous	-
18	5303281627		Base-broil		Appelez-nous	-
19	3131570		Cover Hinge Cutout				$ 7.35
20	3131660		Shield, Rear Wall		Appelez-nous	-
21	3014073		Socket Oven Lite		Appelez-nous	-
22	40A15		Lamp Oven Lite   (Replaces: 5303013071)			Immediately	$ 1.98
*65246	3131903		Bumper				$ 55.36
*65247	5303288460		Tee-nut Level Leg				$ 27.14
*65247	19100180225		Wiring Diagram-not For Purchase		Appelez-nous	-
12A	3017142		Insulation (wrapper) (non-illustrated)				$ 193.50
12B	3204582		Insulation-back (non-illustrated)		Appelez-nous	-
19A	3014226		Support-oven Bottom, (non-illustrated)		Appelez-nous	-
20A	3203455		Shield-flue Top (non-illustrated)		Appelez-nous	-
20B	5303015372		Cover, Front Main (non-illustrated)		Appelez-nous	-
20C	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
20D	3018607		Cover-plate (non-illustrated)				$ 10.50
20E	08067961		Fastener-power Cord		Appelez-nous	-
20F	3934056		Anti, Tip Bracket (non-illustrated)		Appelez-nous	-
9A	5303269519		Pnl-b/s-lh-white		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
