SELECT A DIAGRAM

01 - Oven, Literature


02 - Oven Door


03 - Internal Oven

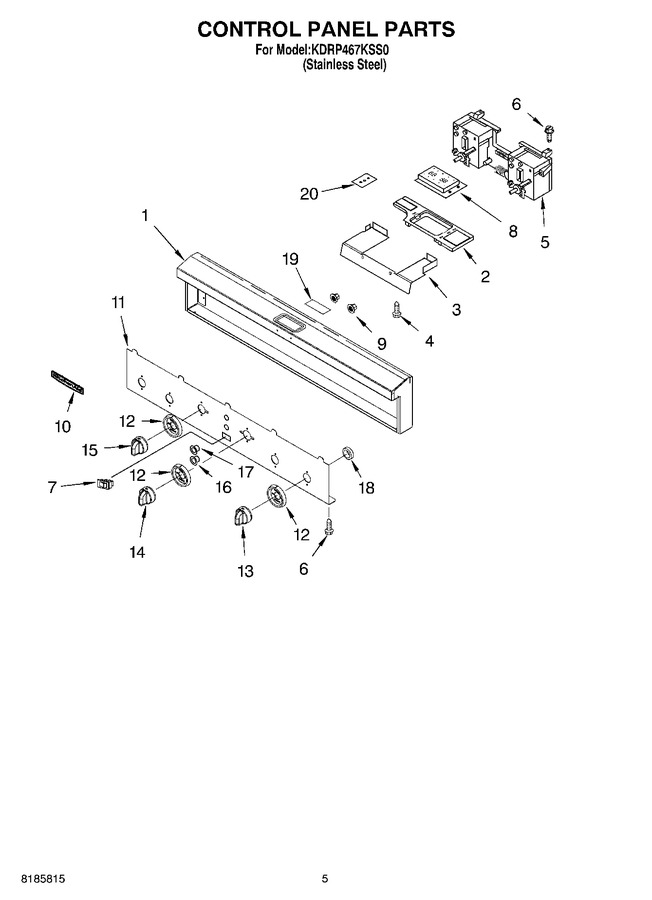

04 - Control Panel


05 - Top Venting


06 - Cooktop


07 - Burner Box & Manifold


08 - Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300208		Panel, Control		Appelez-nous	-
2	4453000		Bracket, Display		Appelez-nous	-
3	8300805		Bracket, Display Mounting		Appelez-nous	-
4	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
5	8300203		Control, Zodiac		Appelez-nous	-
6	4449899		Screw, 6-19 X 1		Appelez-nous	-
7	WP4452842		Switch, Rocker   (Replaces: 4452842)				$ 89.53
8	WP4452999		Module, Display   (Replaces: 4452999)			Immediately	$ 293.49
9	WP2004333		Palnut   (Replaces: 2004333)				$ 9.63
10	2005292		Nameplate				$ 52.20
11	8300167		Face, Control Panel		Appelez-nous	-
12	4455192		Bezel, Knob		Appelez-nous	-
13	WPW10078400		Knob, Control   (Replaces: 4454970)				$ 6.26
14	4455115		Knob, Temp/time				$ 21.22
15	4455141		Knob, Selector				$ 21.38
16	4452998		Button, Cancel		Appelez-nous	-
17	WP4452997		Button, Enter   (Replaces: 4452997)				$ 127.36
18	4455719		Spacer Ring		Appelez-nous	-
19	4455806		Glass, Display		Appelez-nous	-
20	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.33

    View Diagram in Separate Window       Print Part List
