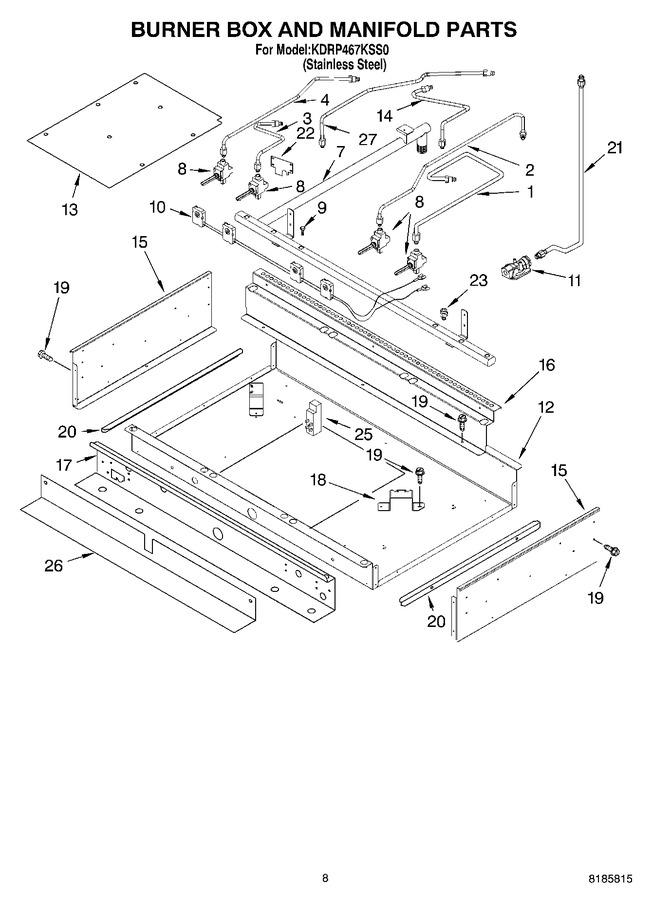

07 - Burner Box & Manifold


08 - Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300231		Tubing, Gas Burner - Rf		Appelez-nous	-
2	8300230		Tubing, Gas Burner - Rr		Appelez-nous	-
3	8300187		Tubing, Gas Burner - Lf		Appelez-nous	-
4	8300188		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8300174		Manifold Assembly Right Side		Appelez-nous	-
8	3185829		Valve, Burner (bolt (4))		Appelez-nous	-
8	3191292		Valve, Burner (red)				$ 120.40
8	3192157		Valve, Burner (silver)		Appelez-nous	-
9	3185829		Bolt (gas Valve)		Appelez-nous	-
10	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
10	8300794		Burner Switch & Harness Assembly				$ 20.32
11	WP9759091		Pressure Regulator   (Replaces: 4453033)			Immediately	$ 291.80
12	8300185		Box, Burner		Appelez-nous	-
13	8284964		Plate, Burner Holder		Appelez-nous	-
14	8300229		Tubing, Gas Burner - Cf		Appelez-nous	-
15	8284677		Side, Burner Box (right Side)		Appelez-nous	-
15	8284678		Side, Burner Box (left Side)		Appelez-nous	-
16	8284946		Support, Rear		Appelez-nous	-
17	8301024		Support, Cooktop		Appelez-nous	-
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	4454974		Rail, Support Rh & Lh		Appelez-nous	-
21	8300156		Tube, Manifold		Appelez-nous	-
22	8300792		Cover, Manifold		Appelez-nous	-
23	4453115		Adapter (1/2`` Male)				$ 108.60
23	4453116		Adapter (1/2`` Female)				$ 153.80
23	WP4450118		Adapter (nut, 6-32 U Type)   (Replaces: 4450118)				$ 7.16
25	WPW10110486		Module, Spark   (Replaces: 8522427)				$ 285.33
26	8300216		Cover		Appelez-nous	-
27	8300232		Tubing, Gas Burner - Cr		Appelez-nous	-
