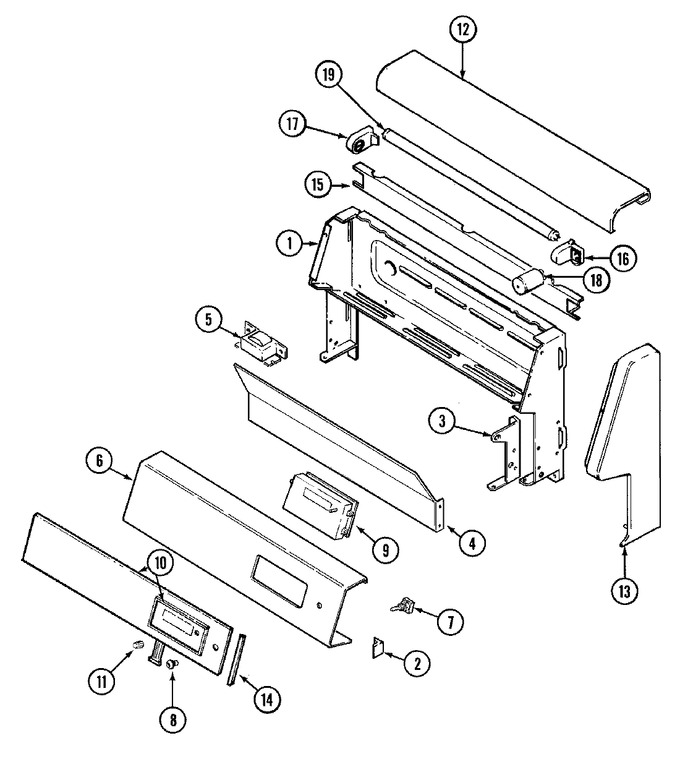

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 21 |
|
- | ||||
| 2 | 8010P083-60 | Spacer | 21 |
|
- | ||||
| 2 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 21 |
|
$ 6.98 | ||||
| 3 | 3807F454-51 | Support, Main Top (lt) | 21 |
|
- | ||||
| 3 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 21 |
|
Immediately | $ 12.62 | |||
| 3 | 3807F453-51 | Support, Main Top (rt) | 21 |
|
- | ||||
| 4 | 7109P028-60 | Washer | 21 |
|
- | ||||
| 4 | W11772394 | Screw (Replaces: 7101P277-60) | 21 |
|
Immediately | $ 10.94 | |||
| 4 | 3604F188-09 | Shield, Flue | 21 |
|
- | ||||
| 5 | 7412P010-60 | Ballast | 21 |
|
- | ||||
| 6 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 21 |
|
Immediately | $ 6.47 | |||
| 6 | 7703P441-60 | Panel, Control (blk) | 21 |
|
- | ||||
| 7 | 7403P109-60 | Switch, Push (blk) | 21 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 21 |
|
- | ||||
| 9 | 7601P210-60 | Clock | 21 |
|
- | ||||
| 10 | 4851S015-59 | Panel, Control Assy | 21 |
|
- | ||||
| 11 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 21 |
|
$ 12.13 | ||||
| 12 | 7724P054-60 | Cover, Light (blk) | 21 |
|
- | ||||
| 13 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 21 |
|
$ 7.68 | ||||
| 13 | 7726P047-60 | End Cap (rt-blk) | 21 |
|
- | ||||
| 13 | 7726P048-60 | End Cap (lt-blk) | 21 |
|
- | ||||
| 14 | 7720P155-60 | Trim, Glass Retainer (blk) | 21 |
|
- | ||||
| 15 | 3807F406-71 | Holder, Lamp (wht) | 21 |
|
- | ||||
| 16 | 7408P029-60 | Receptacle, Light (rt) | 21 |
|
- | ||||
| 17 | 7408P030-60 | Receptacle, Snap-in (lt) | 21 |
|
- | ||||
| 18 | 7415P001-60 | Starter | 21 |
|
- | ||||
| 19 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 21 |
|
Immediately | $ 121.45 | |||
| 21 | 5180D151-60 | Harness, Control Panel | 21 |
|
- | ||||
| 21 | 74001441 | Harness, Pedestal | 21 |
|
- | ||||
| 21 | 5125A353-60 | Wires, Loose (2 Ctrl Panel) | 21 |
|
- | ||||
| 22 | 8113P046-60 | Manual, Use & Care | 21 |
|
- | ||||
| 23 | 16000329 | Guide, Quick Ref. - Magic Chef | 21 |
|
- |
