SELECT A DIAGRAM

01 - Body

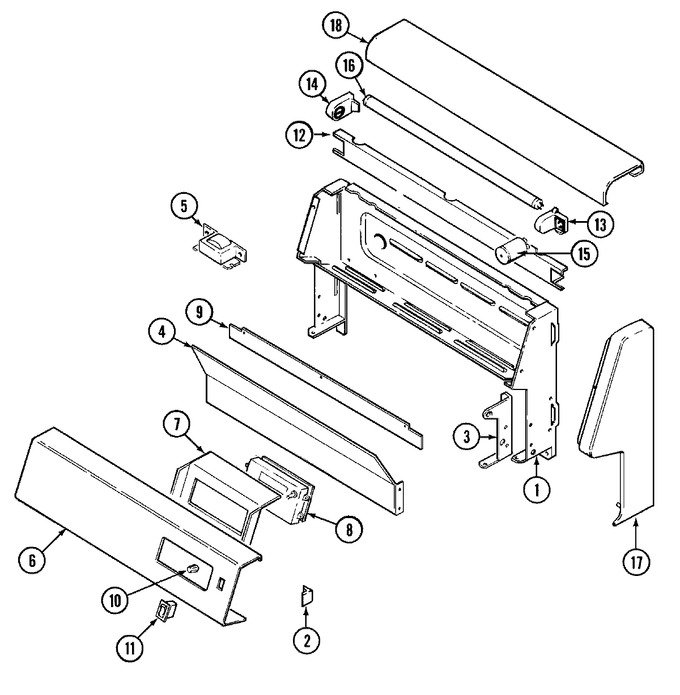

02 - Control Panel


03 - Control Panel (serial Prefix 27)


04 - Door/drawer


05 - Door/drawer (ser. Pre. 30 3488xra-n)


06 - Gas Controls


07 - Oven/base


08 - Top Assembly


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4001F091-51		Housing, Control Panel	27	Appelez-nous	-
1	74002162		Housing, Control Panel	32	Appelez-nous	-
2	WP59002061		Screw, Switch   (Replaces: 7101P148-60)	27			$ 6.98
2	8010P083-60		Spacer	27	Appelez-nous	-
3	3807F454-51		Support, Main Top (lt)	27	Appelez-nous	-
3	3807F453-51		Support, Main Top (rt)	27	Appelez-nous	-
3	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	27		Immediately	$ 12.62
4	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	27		Immediately	$ 12.62
4	3604F188-09		Shield, Flue	27	Appelez-nous	-
5	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	27		Immediately	$ 12.62
5	7412P007-60		Ballast	27	Appelez-nous	-
6	7703P594-60		Panel, Control (blk)	27	Appelez-nous	-
6	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	27		Immediately	$ 6.47
7	74001506		Bracket, Clock	27	Appelez-nous	-
7	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	27		Immediately	$ 6.47
8	74002254		Clock (blk)	34	Appelez-nous	-
8	7601P230-60		Clock (blk)	27	Appelez-nous	-
8	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	27		Immediately	$ 12.62
9	8036P003-60		Shield, Sight	27	Appelez-nous	-
9	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	27		Immediately	$ 12.62
10	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P492-60)	27			$ 12.13
10	W10124350		Not Required Part Or See Note	34	Appelez-nous	-
11	7403P067-60		Switch, Rocker (blk)	27			$ 91.35
12	3807F406-71		Holder, Lamp (wht)	27	Appelez-nous	-
13	7408P029-60		Receptacle, Light (rt)	27	Appelez-nous	-
14	7408P030-60		Receptacle, Snap-in (lt)	27	Appelez-nous	-
15	7415P001-60		Starter	27	Appelez-nous	-
16	WP95292		Light, Control Panel   (Replaces: 7407P004-60)	27		Immediately	$ 121.45
17	7726P047-60		End Cap (rt-blk)	27	Appelez-nous	-
17	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	27			$ 7.68
17	7726P048-60		End Cap (lt-blk)	27	Appelez-nous	-
17	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	27		Immediately	$ 12.62
18	7724P054-60		Cover, Light (blk)	27	Appelez-nous	-
19	5180D151-60		Harness, Control Panel	27	Appelez-nous	-
19	5185D251-60		Harness, Pedestal	27	Appelez-nous	-
19	5125A353-60		Wires, Loose (2 Ctrl Panel)	27	Appelez-nous	-
19	5170P204-60		Harness, Sensor & Lock	27	Appelez-nous	-
20	74001712		Manual, Use & Care (korean)	27	Appelez-nous	-
20	8113P066-60		Manual, Use & Care	27	Appelez-nous	-
20	74002471		Manual, Use & Care Korean!!!	34	Appelez-nous	-
21	16000329		Guide, Quick Ref. - Magic Chef	27	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
