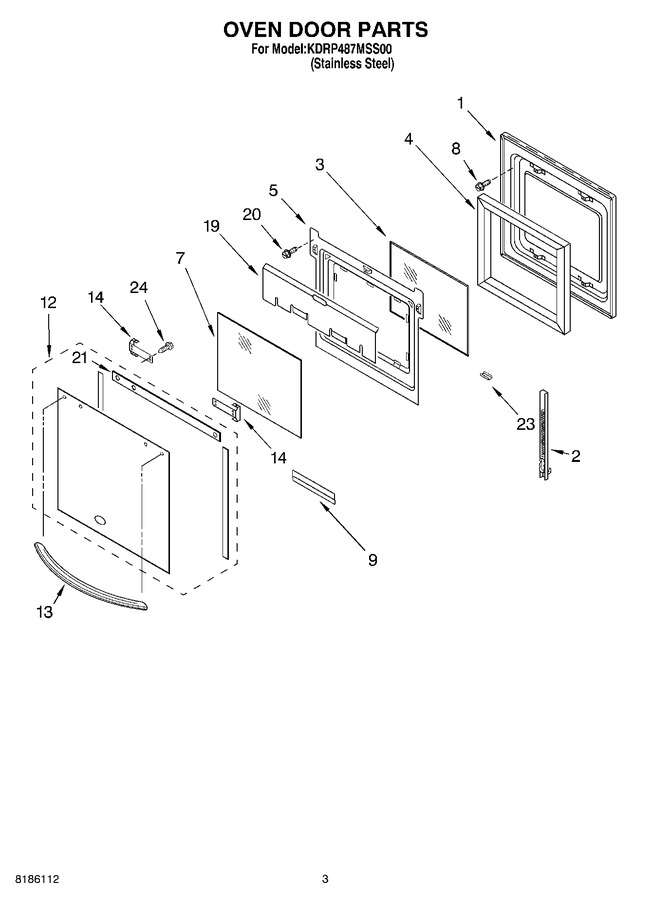

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Door Liner   (Replaces: 4455616)				$ 301.61
2	WP9760572		Hinge, Door (l.side)   (Replaces: 8300572)				$ 95.97
2	WP9760571		Hinge, Door (r.side)   (Replaces: 8300571)			Immediately	$ 98.15
3	4449251		Glass, Inner		Appelez-nous	-
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 23.08
5	4457130		Retainer, Glass   (Replaces: 8300776)		Appelez-nous	-
7	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 157.97
8	WP4449743		Screw, 8-32 X 3/8   (Replaces: 4449743)				$ 6.47
9	4451668		Retainer, Glass		Appelez-nous	-
12	8301257		Assy, Door Glass		Appelez-nous	-
13	8301255		Door Handle		Appelez-nous	-
14	WP3400832		Bracket, Handle (screw)   (Replaces: 3400832)			Immediately	$ 6.98
14	4455803		Bracket, Handle (right Hand)				$ 30.70
14	4455804		Bracket, Handle (left Hand)				$ 25.95
19	4450360		Shield, Heat		Appelez-nous	-
20	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
21	8300853		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip		Appelez-nous	-
23	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
24	WPW10132940		Screw, 8-32 X .548   (Replaces: 3196184)				$ 8.50
