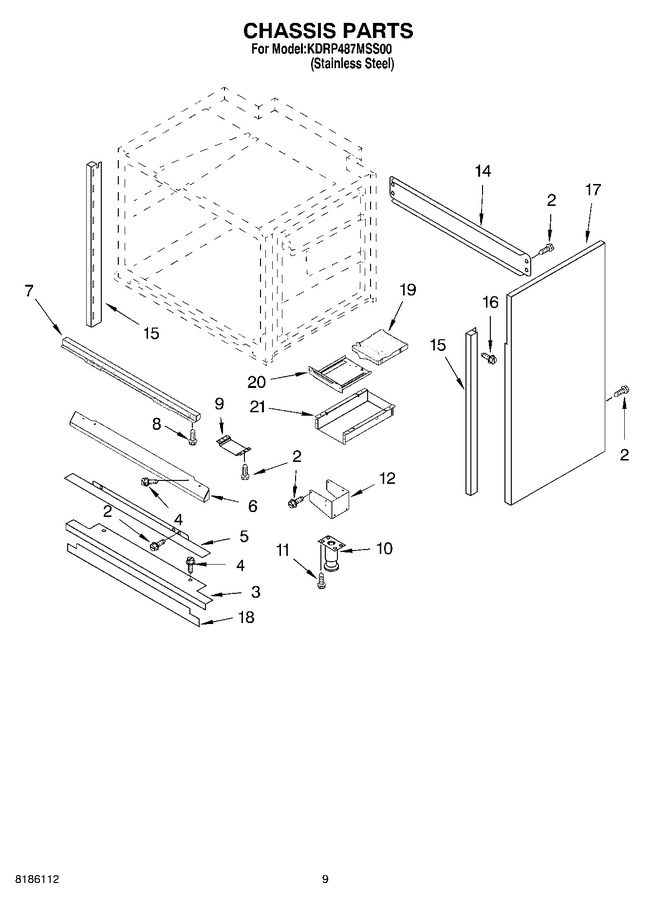

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | 8301141 | Backer, Trim Lower |
|
- | |||||
| 4 | WP3400805 | Screw, 8-18 X 3/8 (Replaces: 3400837) |
|
$ 6.47 | |||||
| 5 | 8301137 | Deflector, Center |
|
- | |||||
| 6 | 8301138 | Vent, Bottom Upper |
|
- | |||||
| 7 | 8301142 | Vent, Center |
|
- | |||||
| 7 | 8301576 | Gasket |
|
- | |||||
| 7 | WP3400805 | Screw (4) (Replaces: 3400805) |
|
$ 6.47 | |||||
| 8 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | 4455604 | Bracket, Mounting Regulator |
|
- | |||||
| 10 | 4452430 | Foot Assembly |
|
- | |||||
| 11 | 3400518 | Screw, 5/16-12 X 5/8 |
|
$ 11.68 | |||||
| 12 | 4455644 | Gusset |
|
- | |||||
| 14 | 8301135 | Brace, Rear |
|
- | |||||
| 15 | 8301134 | Trim, Front (left Side) |
|
- | |||||
| 15 | 8301133 | Trim, Front (right Side) |
|
- | |||||
| 16 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 17 | 8301131 | Side Chassis (right Side) |
|
- | |||||
| 17 | 8301132 | Side Chassis (left Side) |
|
- | |||||
| 18 | 8300154 | Insulation |
|
- | |||||
| 19 | 8301195 | Control, Master |
|
- | |||||
| 20 | 8301288 | Box, Control |
|
- | |||||
| 21 | 8301577 | Bracket, Control Box |
|
- | |||||
| N/A | Miscellaneous |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 8284772 | Harness, Wire Ignitor (brown) |
|
- | ||||||
| 3191506 | Bushing, Conduit |
|
- | ||||||
| 1129449 | Bushing |
|
- | ||||||
| 8302203 | Conduit |
|
- | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 7.11 | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| 814381 | Pin Hinge Kit |
|
$ 7.73 | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| 8284782 | Spud Kit |
|
- | ||||||
| W10138103 | Bracket, Anti-tip (Replaces: 4453141) |
|
$ 167.49 | ||||||
| W10138103 | Bracket, Anti-tip (Replaces: 4453202) |
|
$ 167.49 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 4453192 | Seal, Ribbon Cable |
|
- | ||||||
| 4453191 | Seal, Access Panel |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| WP4448444 | Grommet, Rail Harness, Wire (main) (Replaces: 4448444) |
|
$ 6.73 | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- | ||||||
| 8302377 | Right Side |
|
- | ||||||
| 8301264 | Left Side |
|
- | ||||||
| 8301196 | Jumper Harness |
|
- | ||||||
| 8301582 | Harness, Control Master |
|
- | ||||||
| 8284771 | Harness, Wire (ignitor 39``) |
|
- | ||||||
| 3192230 | Harness, Wire Ignitor (28``) |
|
- |
