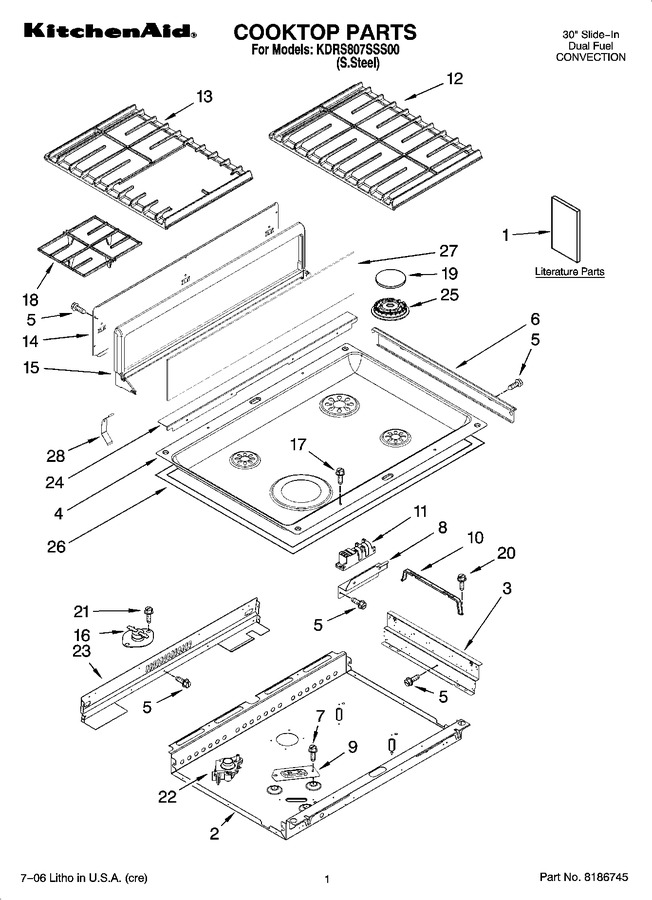

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | 9763467 | Guide Easy Set |
|
- | |||||
| 1 | 9763462 | Installation Instructions |
|
- | |||||
| 1 | 9763459 | Use & Care Guide |
|
- | |||||
| 1 | 9762788 | Tech Sheet |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 2 | W10110471 | Burner Box |
|
- | |||||
| 3 | 9761784 | Bracket, Mounting |
|
- | |||||
| 4 | W10106380 | Cooktop |
|
- | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 6 | W10110684 | Trim, Cktop (r.hand) |
|
- | |||||
| 6 | W10110679 | Trim, Cktop (l.hand) |
|
- | |||||
| 7 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 8 | W10108030 | Bracket, Spark Module |
|
- | |||||
| 9 | 9763445 | Bracket, Burner |
|
- | |||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | WPW10110491 | Module, Spark (Replaces: 8522426) |
|
Immediately | $ 276.35 | ||||
| 12 | 9761625CB | Grate, Burner |
|
$ 107.60 | |||||
| 13 | 9761624CB | Grate, Brnr (tcb) |
|
$ 105.20 | |||||
| 14 | 9761577 | Cover, Backsplash |
|
- | |||||
| 15 | W10109770 | Backsplash |
|
- | |||||
| 15 | 9763483BL | Gasket |
|
$ 104.52 | |||||
| 16 | WP9759944 | Thermostat (60c) (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | WP9761557CB | Grate, Insert (tcb) (Replaces: 9761557CB) |
|
Immediately | $ 153.36 | ||||
| 19 | 9761563CB | Cap, Burner (12.5k (rr)) |
|
Immediately | $ 92.83 | ||||
| 19 | WP8284669 | Cap, Burner (6k (rf, Lr)) (Replaces: 8284669) |
|
Immediately | $ 64.79 | ||||
| 20 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 21 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 22 | WPW10128446 | Orifice Holder (small (2)) (Replaces: W10110375) |
|
Immediately | $ 97.44 | ||||
| 22 | W10110376 | Orifice Holder (large) |
|
- | |||||
| 23 | 9761755 | Cover, Cktp Rear |
|
$ 53.38 | |||||
| 24 | WP9763436 | Cover, Top Rear (Replaces: 9763436) |
|
$ 127.77 | |||||
| 25 | WPW10406243 | Head, Burner (small (2)) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 25 | WPW10406797 | Head, Burner (large) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 26 | W10109920 | Gasket (tape) |
|
$ 43.42 | |||||
| 27 | 9761749BL | Glass, Backsplash |
|
$ 142.53 | |||||
| 28 | 9762768 | Clip, Retainer |
|
$ 38.30 |
