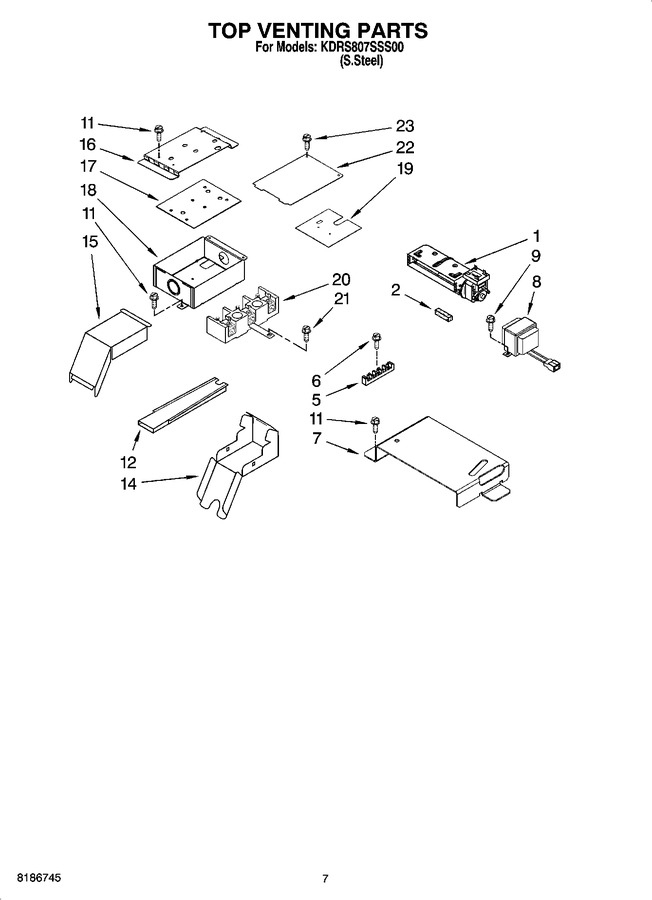

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10810687		Blower   (Replaces: 9759320)			Immediately	$ 309.01
2	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
5	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
6	3196538		Screw		Appelez-nous	-
7	9757829		Bracket, Transfrmr		Appelez-nous	-
8	WPW10111628		Transformer   (Replaces: 9760212)				$ 254.91
9	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
12	4451759		Vent, Exhaust				$ 90.01
14	4455177		Elbow, Vent- Bottom				$ 9.77
15	4455178		Elbow, Vent- Top				$ 13.30
16	9759938		Bracket, Term.box		Appelez-nous	-
17	9759884		Insulation		Appelez-nous	-
18	W10115858		Box, Terminal   (Replaces: 9757404)				$ 104.57
19	9759721		Insulator, Termianl Box		Appelez-nous	-
20	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 39.72
21	W11684512		Screw   (Replaces: 3400080)				$ 12.69
22	9757405		Cover, Term Box				$ 43.66
23	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
