View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven Parts

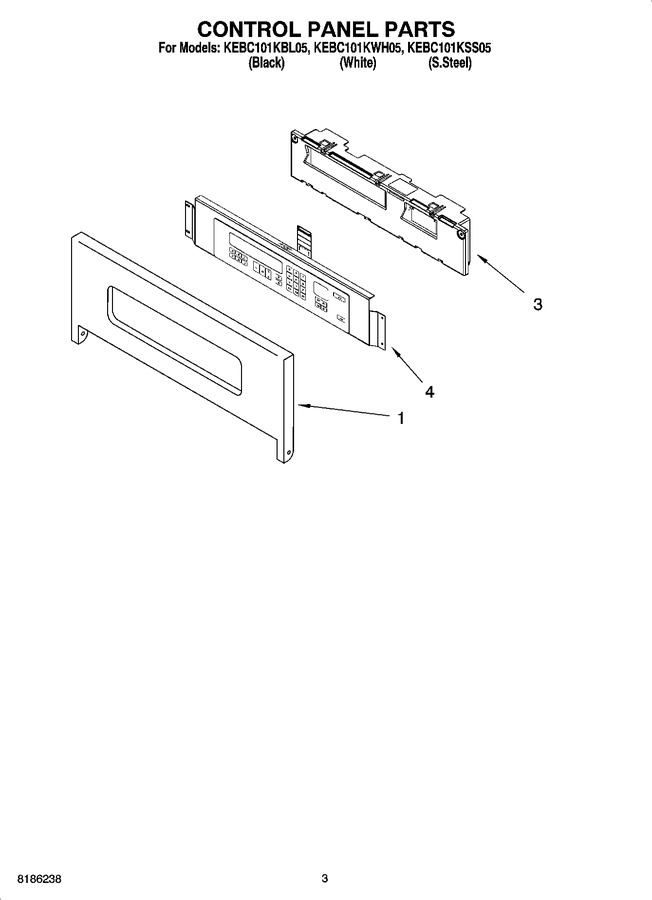

02 - Control Panel Parts
03 - Internal Oven Parts
04 - Oven Door Parts
05 - Top Venting Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452604 | Panel, Control (black Model) |
|
- | |||||
| 1 | 4452605 | Panel, Control (white Model) |
|
- | |||||
| 1 | 4451791 | Panel, Control (s.steel) |
|
- | |||||
| 1 | WP3400832 | Panel, Control (screw) (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 3 | 8302311 | Assy, Control |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 4 | 8302750 | Switch, Membrane (black) |
|
- | |||||
| 4 | 8302751 | Switch, Membrane (white) |
|
- | |||||
| 4 | 8302767 | Switch, Membrane (s.steel) |
|
- |
