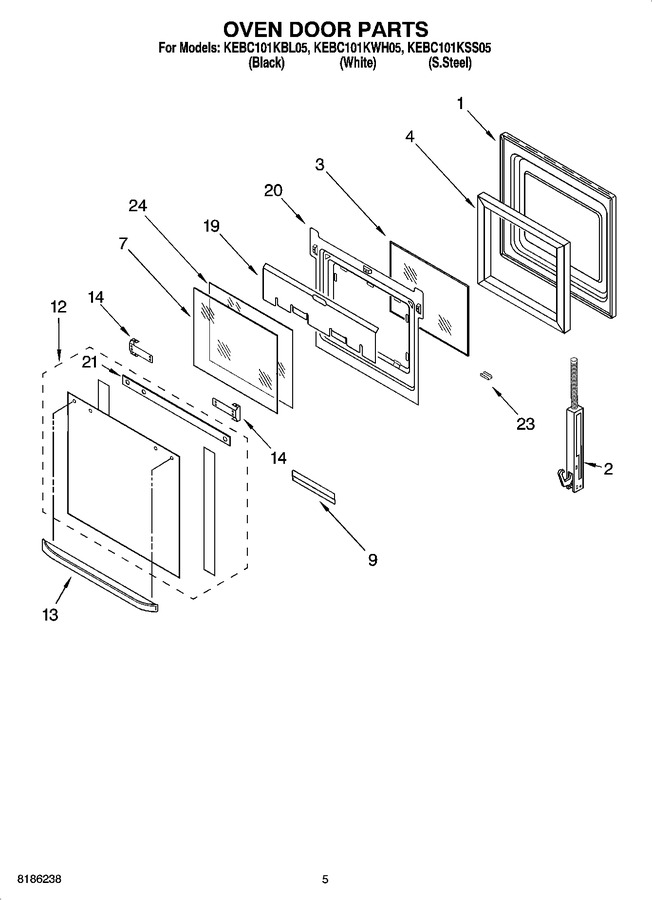

01 - Oven Parts


02 - Control Panel Parts


03 - Internal Oven Parts


04 - Oven Door Parts


05 - Top Venting Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 317.54
2	WP9760577		Hinge, Door (r.side (yellow))   (Replaces: 8300577)			Immediately	$ 99.89
2	WP9760575		Hinge, Door (r.side (clear))   (Replaces: 8300575)			Immediately	$ 58.11
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
2	WP9760576		Hinge, Door (l.side (clear))   (Replaces: 8300576)			Immediately	$ 50.81
2	WP9760574		Hinge, Door (l.side (yellow))   (Replaces: 8300578)			Immediately	$ 60.36
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	4450470		Retainer, Glass		Appelez-nous	-
12	4455391		Door Glass, Assy (black Model)		Appelez-nous	-
12	W10401225		Door Glass, Assy (s.steel)   (Replaces: 4452257)				$ 289.44
12	4455390		Door Glass, Assy (white Model)		Appelez-nous	-
13	4452502		Door Handle (black Model)		Appelez-nous	-
13	4452503		Door Handle (white Model)		Appelez-nous	-
13	4455851		Door Handle (stainless Steel)		Appelez-nous	-
14	4455803		Bracket, Handle (r.side)				$ 30.70
14	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 8.50
14	4455804		Bracket, Handle (l.side)				$ 25.95
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	8300778		Retainer, Glass		Appelez-nous	-
21	4452326		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
24	8300974		Glass, Inner				$ 82.26
