SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Internal Oven Parts

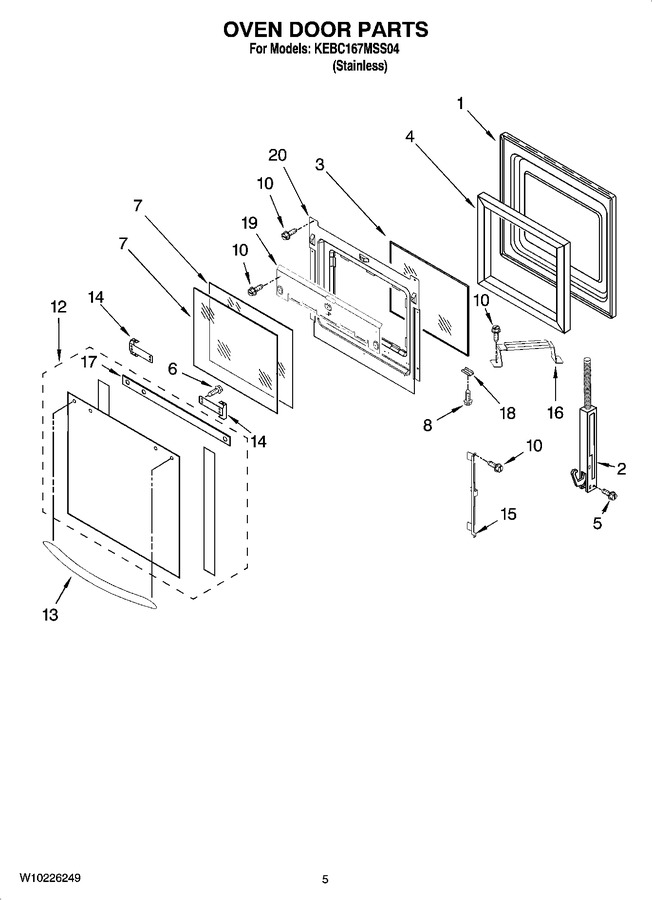

04 - Oven Door Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300152		Door Liner				$ 148.16
2	WP9760574		Hinge, Door (left)   (Replaces: 9760580)			Immediately	$ 60.36
2	WP9760579		Hinge, Door (right)   (Replaces: 9760579)			Immediately	$ 64.35
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	8300797		Insulation, Door				$ 72.37
5	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
6	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
8	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
12	W10151061		Door Glass, Assembly		Appelez-nous	-
13	9760548		Door Handle		Appelez-nous	-
14	4455804		Bracket, Handle (left)				$ 25.95
14	4455803		Bracket, Handle (right)				$ 30.70
15	WP9759229		Bracket (2nd Glass)   (Replaces: 8302092)				$ 160.71
16	8302094		Bracket (3rd Glass)		Appelez-nous	-
17	8301089		Shield, Heat		Appelez-nous	-
18	8300190		Retainer, Glass		Appelez-nous	-
19	8300153		Seal, Door Top		Appelez-nous	-
20	W10158497		Retainer, Clip				$ 5.65

    View Diagram in Separate Window       Print Part List
