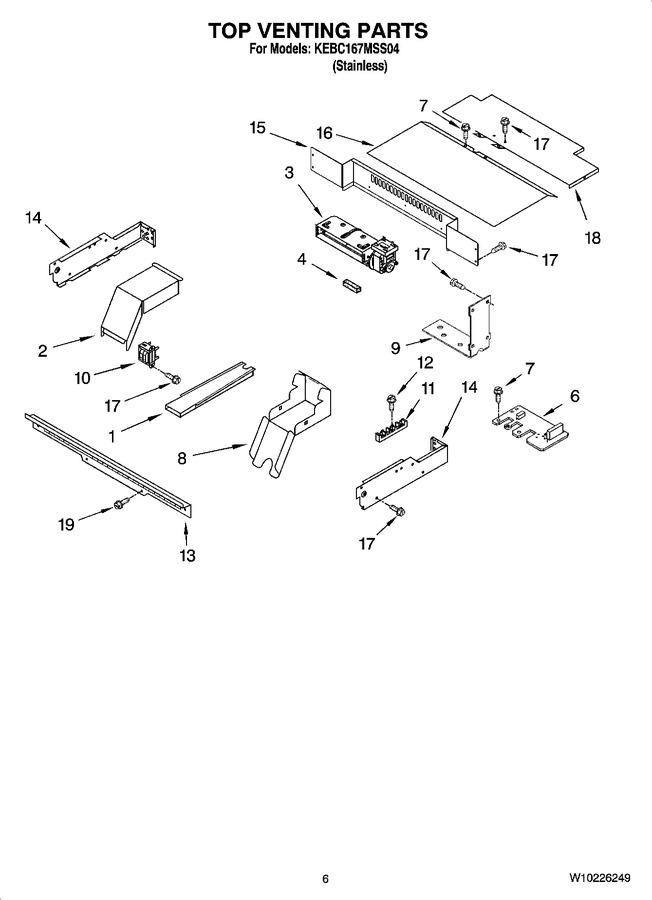

05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 90.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 13.30 | |||||
| 3 | W10810687 | Blower 60mm (Replaces: 8300223) |
|
Immediately | $ 309.01 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 6 | WP4451985 | Suppressor (Replaces: 4451985) |
|
$ 148.69 | |||||
| 7 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 8 | 4455177 | Elbow, Vent- Bottom |
|
$ 9.77 | |||||
| 9 | WP4455352 | Bracket, Blower (Replaces: 4455352) |
|
$ 32.15 | |||||
| 10 | 9760587 | Transformer, Control |
|
$ 112.69 | |||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 12 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 13 | 8301778 | Vent, (control Panel) |
|
- | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 67.21 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 15 | 8302583 | Back, Control |
|
- | |||||
| 16 | 8301223 | Cover, Top Rear |
|
- | |||||
| 17 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 18 | 8301222 | Cover, Top Front |
|
- | |||||
| 19 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 6.84 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | |||||
| 4451761 | Support, Wiring |
|
- | ||||||
| 4452400 | Harness, Ground |
|
$ 38.93 | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| WP482338 | Loctite (1/3 Oz.) (sealer, Silastic (3 Oz.)) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| W10172607 | Harness, Main |
|
- | ||||||
| WP4450952 | Conduit, Single (Replaces: 4450952) |
|
$ 206.55 | ||||||
| 4448664 | Clamp |
|
$ 18.35 | ||||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| 4450800 | Screw, Ground |
|
$ 11.55 |
