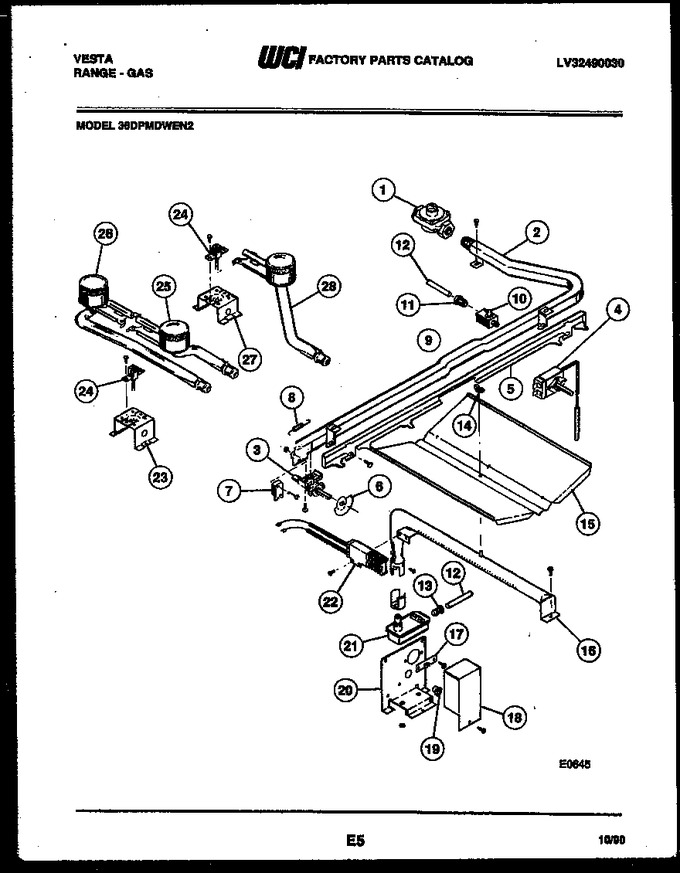

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007974		Pressure Regulator				$ 309.02
2	08013907		Manifold 36``		Appelez-nous	-
3	3205761		Top Burner Valve (5)		Appelez-nous	-
4	5308013926		Thermostat		Appelez-nous	-
5	5303018341		Slide Bar		Appelez-nous	-
6	5303131859		Cam Top Burner (5)		Appelez-nous	-
7	5303131094		Switch - Micro		Appelez-nous	-
8	5303131096		Spring - Slide Bar		Appelez-nous	-
9	5300009126		Clip		Appelez-nous	-
10	5303131099		Valve-shut Off		Appelez-nous	-
11	5303131064		Lock Nut		Appelez-nous	-
12	5303009495		Tube-oven Feed		Appelez-nous	-
13	5308007983		Lock Nut		Appelez-nous	-
14	08007979		Wing Nut		Appelez-nous	-
15	5303131061		Baffle-oven Burner		Appelez-nous	-
16	5303202752		Burner-oven				$ 26.83
17	5308007985		Terminal Board		Appelez-nous	-
18	3131088		Cover - Oven Valve		Appelez-nous	-
19	08008051		Bushing - Nylon Snap		Appelez-nous	-
20	3131069		Support - Oven Valve		Appelez-nous	-
21	5308009419		Valve - Oven Safety				$ 232.67
22	12400035		Ignitor - Oven   (Replaces: 5308009420)			Immediately	$ 60.44
23	5303210471		Support Top Brnr (2)		Appelez-nous	-
24	5303210549		Ignitor (3)		Appelez-nous	-
25	5303131080		Burner-top Front				$ 76.13
26	5303131079		Burner,top ,rear				$ 129.78
27	5303210472		Support-grid Burner		Appelez-nous	-
28	5303131882		Burner Griddle		Appelez-nous	-
*40537	072T781F01		Bracket-igniter		Appelez-nous	-
