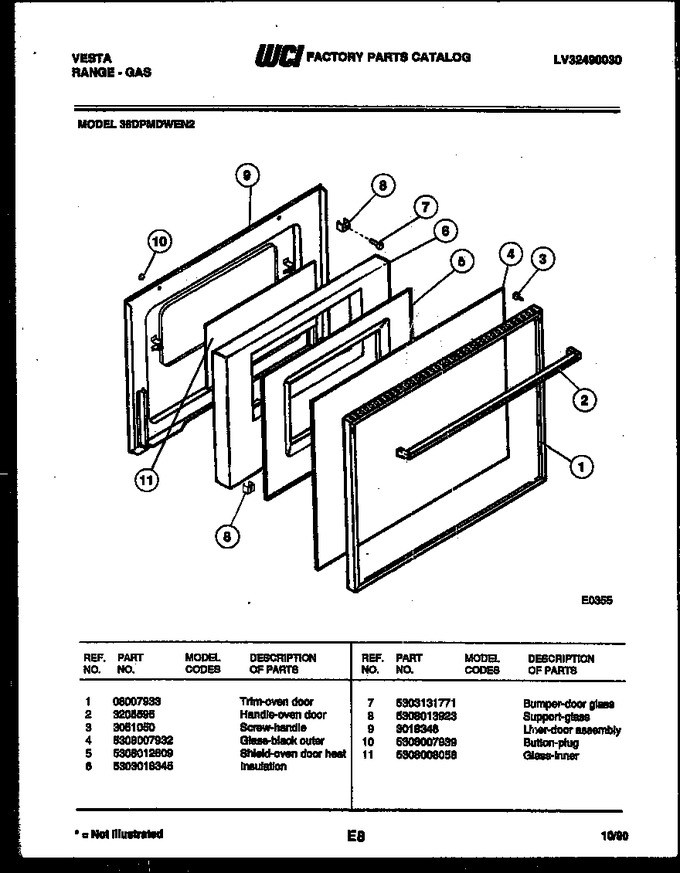

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007933 | Trim - Oven Door |
|
- | |||||
| 2 | 3205595 | Handle-oven Door |
|
- | |||||
| 3 | 3051050 | Screw-handle |
|
$ 12.29 | |||||
| 4 | 5308007932 | Glass-black Outer |
|
- | |||||
| 5 | 5308012609 | Shield-oven Door Heat |
|
- | |||||
| 6 | 5303018345 | Insulation |
|
- | |||||
| 7 | 5303131771 | Bumper-door Glass |
|
- | |||||
| 8 | 5308013923 | Support-glass |
|
- | |||||
| 9 | 3018346 | Liner-door Assembly |
|
- | |||||
| 10 | 5308007939 | Button Plug |
|
- | |||||
| 11 | 5308008058 | Glass-inner |
|
- |
