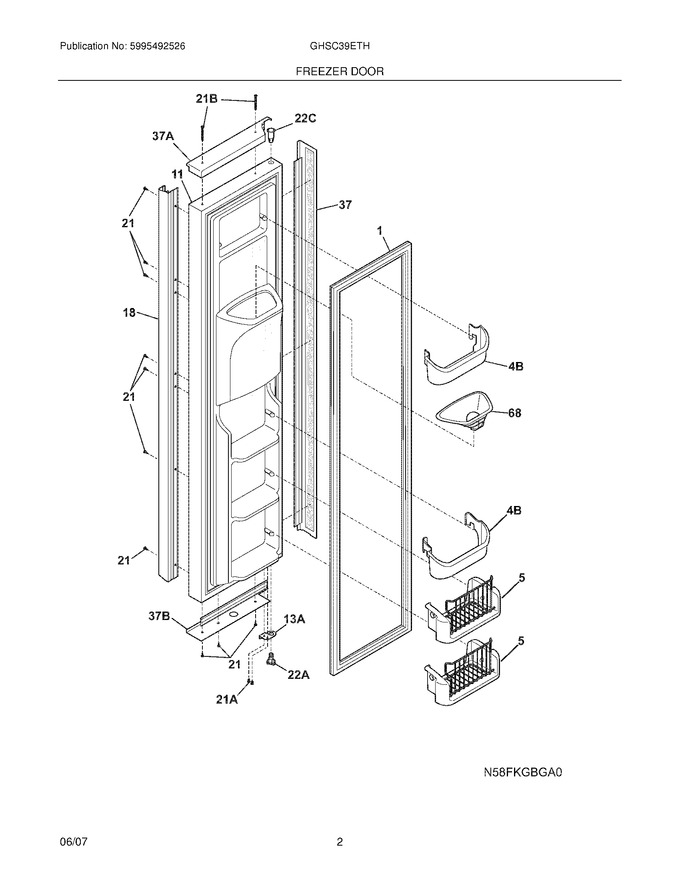

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241545001		Bin-tilt Out,tilt-out				$ 213.10
11	241668127		Door-frzr,white ,complete Assy		Appelez-nous	-
18	241533601		Handle-frzr Door,white		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
37	241533701		Trim-door,white ,side		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
13A	240581902		Door Stop,white ,frzr				$ 47.03
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21B	241543202		Screw,no.10-16 X 2		Appelez-nous	-
22A	242000501		Bearing-hinge(frz),closer   (Replaces: 240328202)				$ 7.14
22C	240328402		Bearing-hinge,natural ,upper				$ 19.85
37A	241534201		Trim-door,white ,top		Appelez-nous	-
37B	241533801		Trim-door,white ,bottom		Appelez-nous	-
4B	241511602		Bin-door,pseudo ,frzr   (Replaces: 241511606)				$ 52.72
F1	241510202		Gasket-frzr Door,white ,magnetic				$ 286.53
NI	240411502		Clip-dispenser Cover		Appelez-nous	-
NI	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 3.79
NI	240552102		Harness-wiring,door				$ 77.60
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5303918256		Dispenser Heater Kit				$ 474.16
