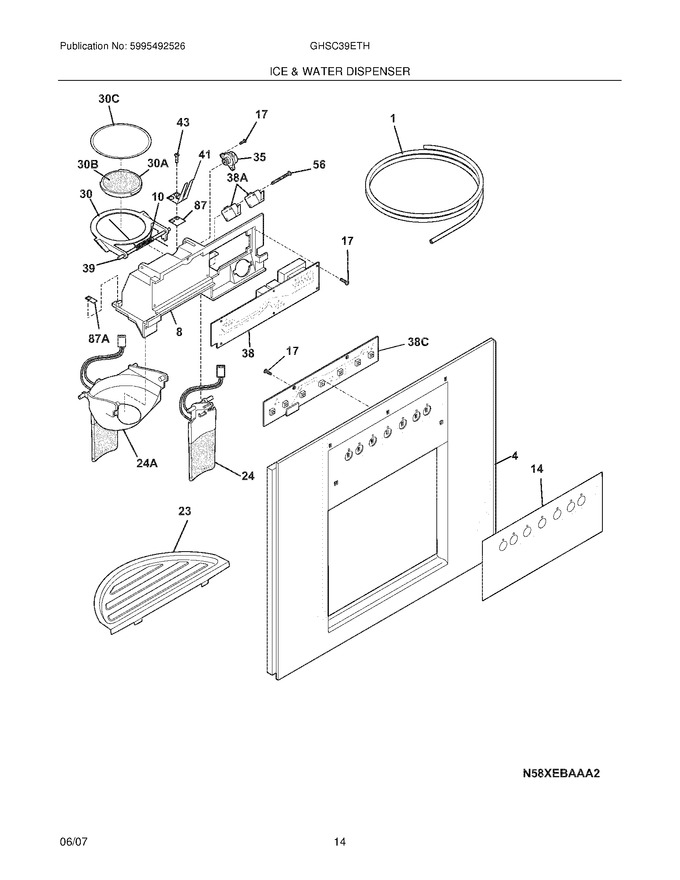

15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	241678901		Cover-module,white		Appelez-nous	-
8	241680501		Module-dispenser,white				$ 166.48
10	241688901		Spring-torsion			Immediately	$ 21.27
14	241543404		Label-module Cover,white		Appelez-nous	-
17	241679801		Screw				$ 14.18
23	241659201		Drip Tray,white		Appelez-nous	-
24	241685701		Actuator-water,white				$ 202.71
30	241688401		Door Assy-ice Chute				$ 49.62
35	241689301		Damper-rotary				$ 70.52
39	241688801		Pin-hinge				$ 43.24
41	241689001		Spring-actuator				$ 21.97
43	215296301		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head				$ 13.46
87	241688302		Bearing Plate				$ 19.85
24A	241682301		Actuator-ice,white				$ 144.59
30A	241688501		Door Center				$ 52.97
30B	241688601		Insulation-door				$ 63.17
30C	241688701		Door Seal				$ 40.46
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 241689101)			Immediately	$ 8.60
38C	241708307		Board-control				$ 255.15
38C	241680001		Harness-ribbon Cable		Appelez-nous	-
87A	241688301		Bearing Plate				$ 19.85
F38	241708102		Board-power				$ 401.58
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561702)			Immediately	$ 20.56
NI	5304453707		Screw-no.8-18 X 1/2,no.6 Hd Plask   (Replaces: 240363402)			Immediately	$ 15.92
NI	240411502		Clip-dispenser Cover		Appelez-nous	-
NI	241686201		Insulator-electrical		Appelez-nous	-
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	218976418		Tube-water Inlet,inlet Valve ,to Filter				$ 64.49
NI	218976421		Tube-water Inlet,valve To Door				$ 20.56
