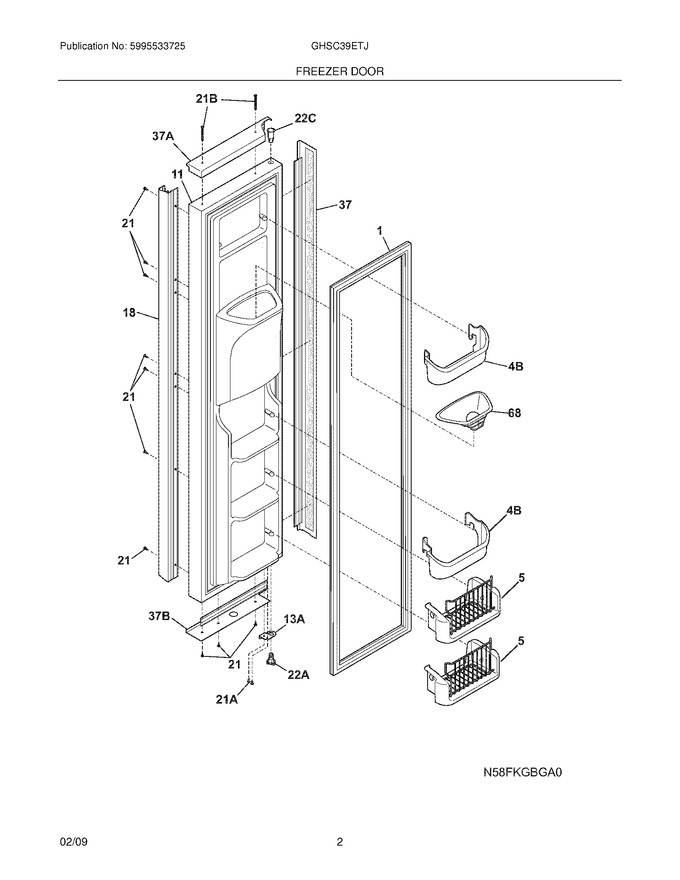

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241510208		Gasket-frzr Door,black ,magnetic   (Replaces: 241510204)			Immediately	$ 94.95
5	241545001		Bin-tilt Out,tilt-out				$ 213.10
11	241615189		Door-frzr,black ,complete Assy		Appelez-nous	-
18	241533607		Handle-frzr Door,aluminum				$ 224.16
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
37	241533707		Trim-door,brushed Aluminu ,side		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
13A	240581906		Door Stop,black ,frzr				$ 73.00
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21B	241543202		Screw,no.10-16 X 2		Appelez-nous	-
22A	242000501		Bearing-hinge(frz),closer   (Replaces: 240328202)				$ 7.14
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
37A	241534207		Trim-door,aluminum ,top		Appelez-nous	-
37B	241533807		Trim-door,aluminum ,bottom		Appelez-nous	-
4B	241511701		Bin-door,pseudo ,frzr   (Replaces: 241808216)			Immediately	$ 67.21
NI	240411502		Clip-dispenser Cover		Appelez-nous	-
NI	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 3.79
NI	240552102		Harness-wiring,door				$ 77.60
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5303918256		Dispenser Heater Kit				$ 474.16
